Controller Antilock Brake

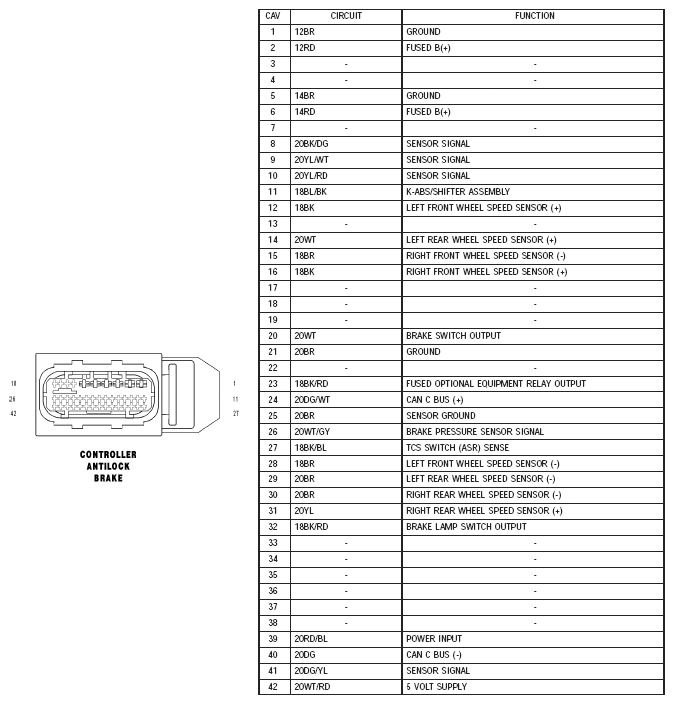

Fig 1: Identifying Controller Antilock Brake Connector Pinouts
G04762885Courtesy of CHRYSLER
