O2 Sensor And EGR Valve Location

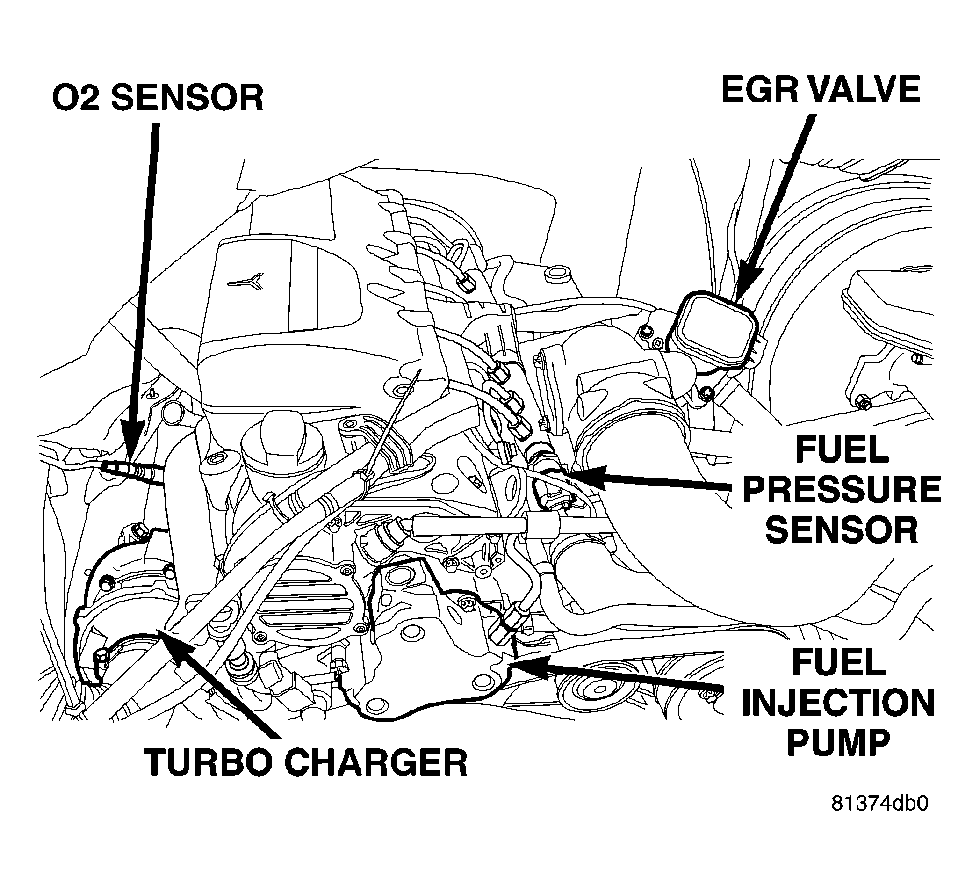

Fig 1: Identifying O2 Sensor And EGR Valve Location
G04536601Courtesy of CHRYSLER
