Mass Air Flow Sensor: Removal
- Disconnect the negative battery cable.
- Detach the air hose at the Manifold Air Flow (MAF) sensor
- Unplug the MAF wiring harness connector.
- Remove the screws retaining the MAF sensor to the air cleaner housing, and remove MAF sensor.

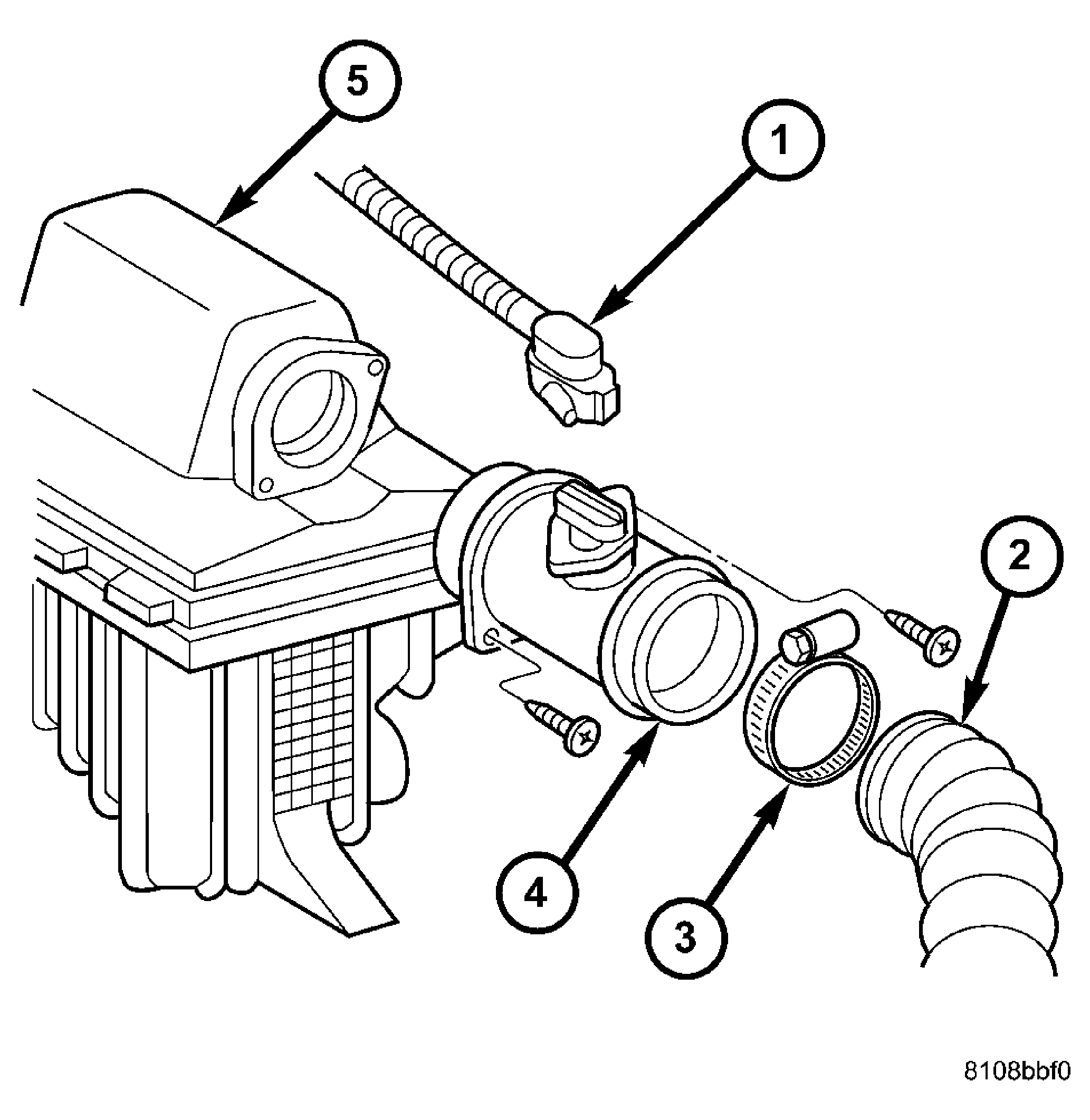

| 1 - WIRING HARNESS |
| 2 - AIR INTAKE HOSE |
| 3 - CLAMP |
| 4 - MAF SENSOR |
| 5 - AIR CLEANER HOUSING |
