Fuel Pressure Sensor: Removal

(Refer to (Refer to FUEL SYSTEM - WARNING) ) Disconnect the negative battery cable.
Remove the mixing housing.
Unplug the sensor. See Fig 1.

Counter-hold the threaded connection at the fuel rail and unscrew the sensor. See Fig 1.

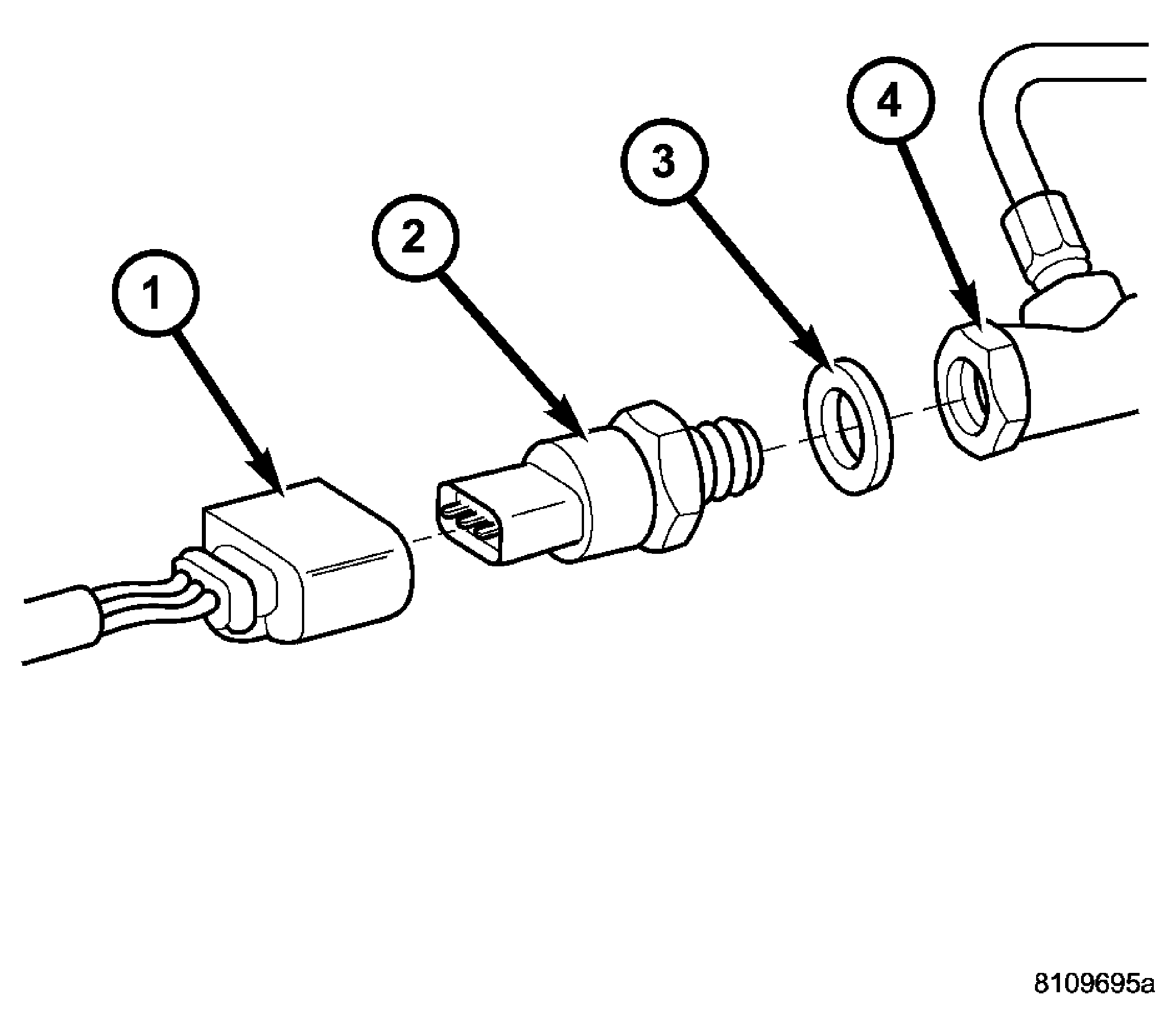

Fig 1: FUEL RAIL PRESSURE SENSOR

Courtesy of DAIMLERCHRYSLER CORP.

1 - WIRING CONNECTOR

2 - FUEL RAIL PRESSURE SENSOR

3 - SEALING RING

4 - FUEL RAIL
