Crankshaft Position Sensor: Installation

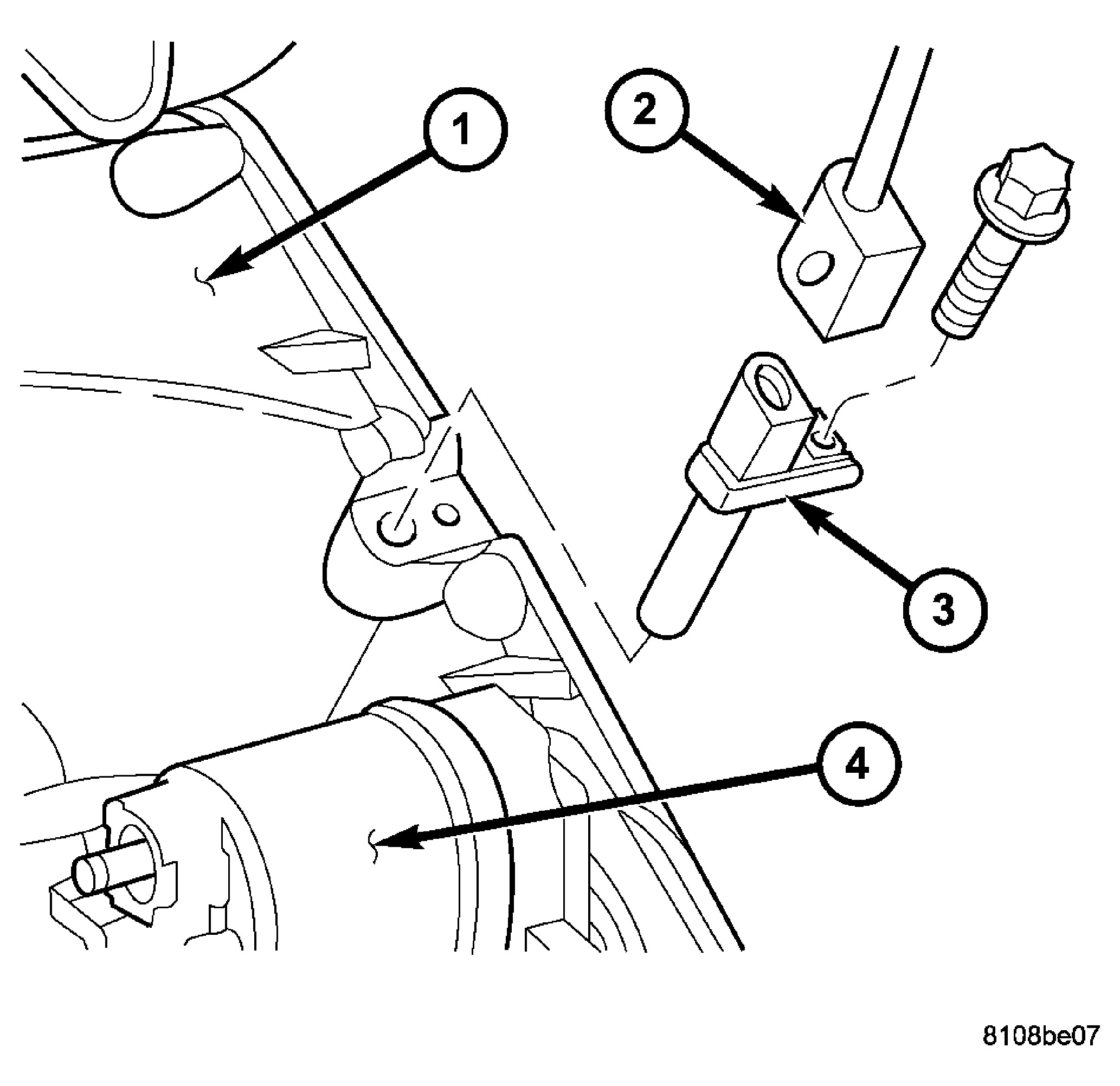

  1. Position the crankshaft position sensor into the access hole and install retaining bolt.
  2. Tighten the retaining bolt to 80 lbs. in. (9 N.m). See Figure.
  3. Connect crankshaft position sensor wiring harness connector. See Figure.
  4. Connect negative battery cable.
