Camshaft Position Sensor: Installation

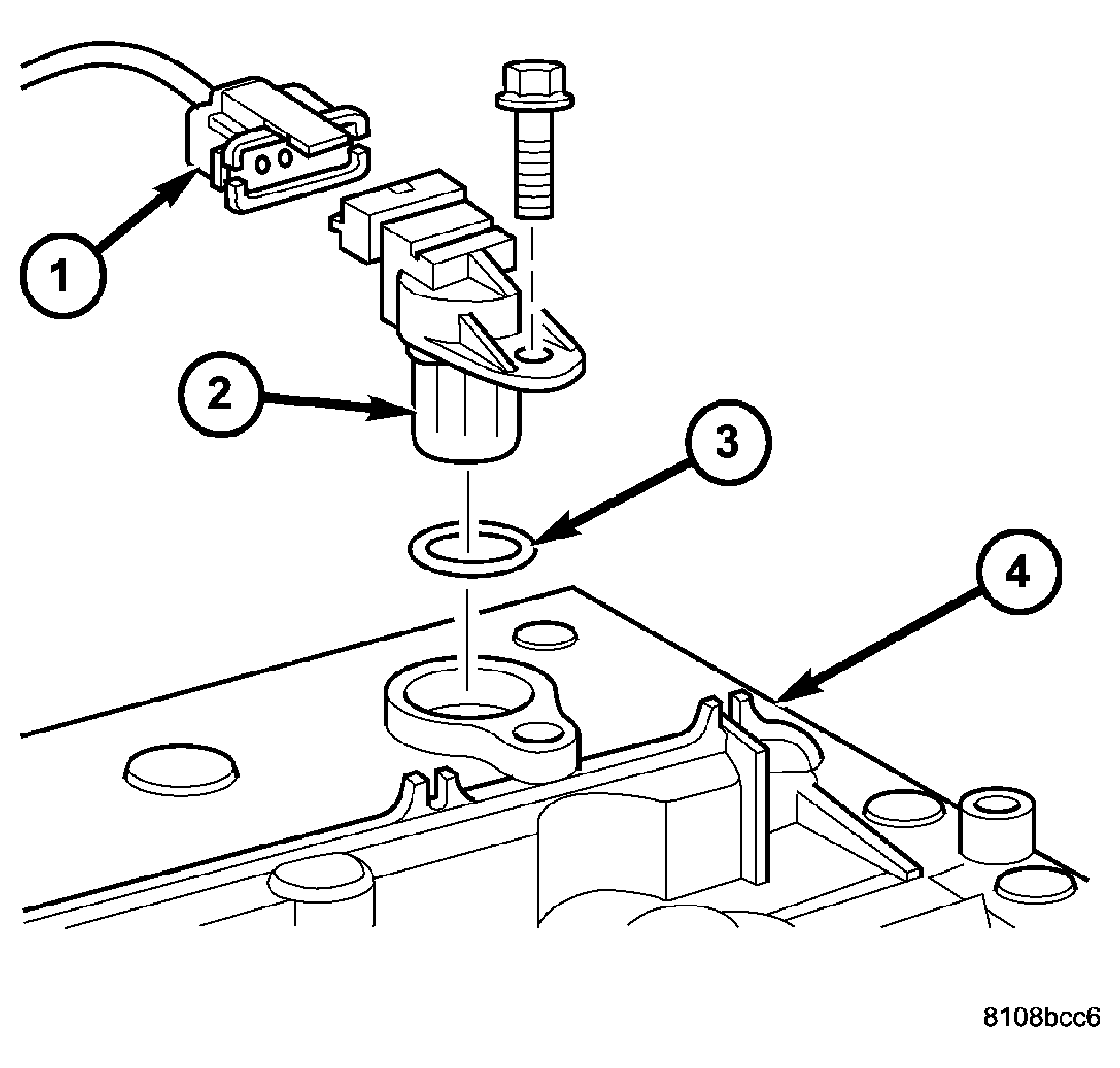

Fig 1: CAM POSITION SENSOR
GC0037164Courtesy of DAIMLERCHRYSLER CORP.
1 - WIRING HARNESS CONNECTOR
2 - CAM POSITION SENSOR
3 - O-RING
4 - CYLINDER HEAD COVER
  1. Install camshaft position sensor and tighten bolt. See Fig 1.
  2. Reconnect electrical connector. See Fig 1.
  3. Install engine cover.
  4. Reconnect negative battery cable.
