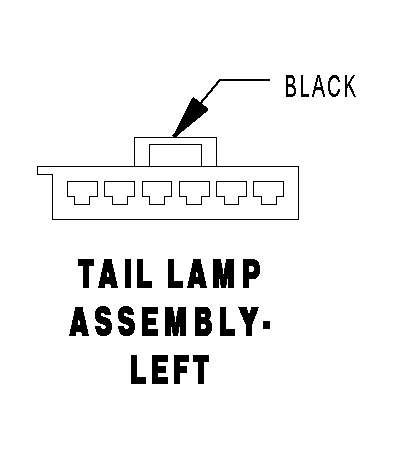

Left Tail Lamp Assembly Connector End View
TAIL LAMP ASSEMBLY-LEFT - BLACK
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
16GY/BK |
LEFT LAMP RELAY OUTPUT |
| 3 |
16BK/RD |
BRAKE LAMP SWITCH OUTPUT |
| 4 |
16WT/RD |
BACK-UP LAMP |
| 5 |
16BK/WT |
LEFT TURN SIGNAL |
| 6 |
16BR |
GROUND |
