Installation - (SRW)
NOTE:
Larger spring bushing goes toward the front.

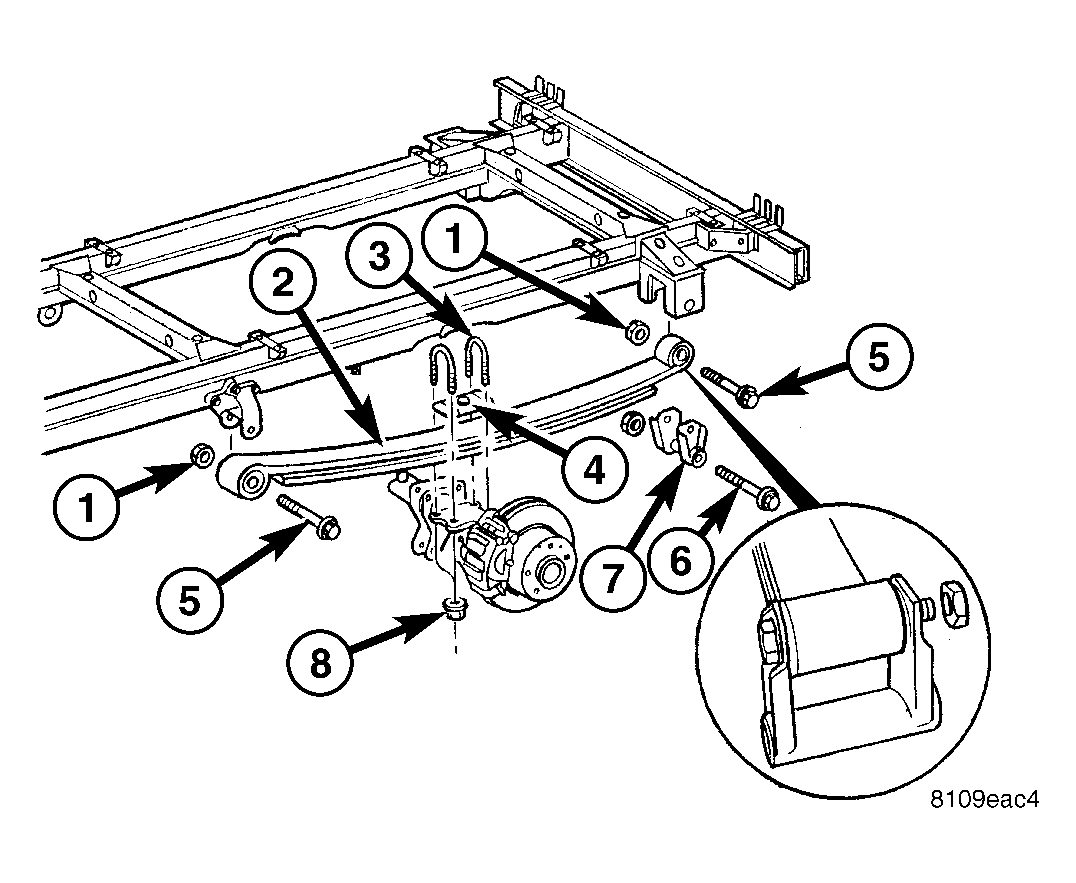

- Install the spring shackle to the spring (if removed). See Figure. Tighten to 90 N.m (66 ft. lbs.).
- Install the spring to the front spring bracket. See Figure. Tighten to 95 N.m (70 ft. lbs.).
- Install the spring to the rear spring bracket. See Figure. Tighten to 85 N.m (63 ft. lbs.).
- Raise the rear axle and attach the spring plate and U-bolts. See Figure. Tighten to 170 N.m (125 ft. lbs.).
- Lower the vehicle.
