Junction Block: Installation

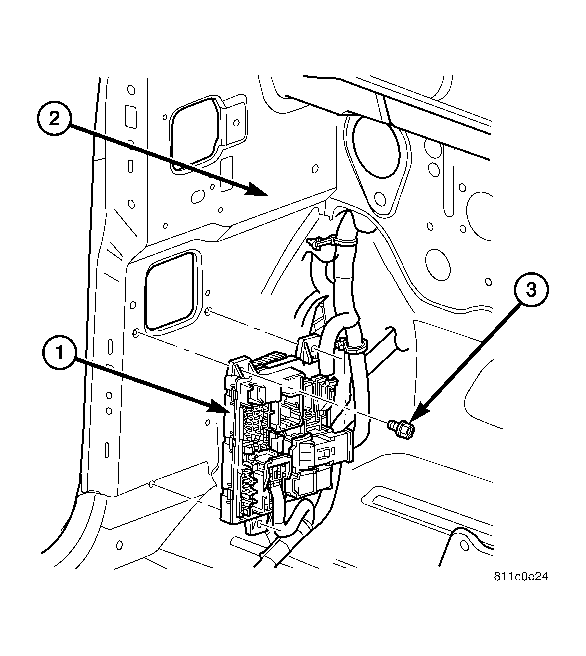

Fig 1: Installing Junction Block
GC0012510Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect wire harness connectors to the Junction Block (JB) (1).
  2. Position JB and install mounting fasteners (3).
  3. Install cowl trim cover (Refer to PANEL-TRIM ).
  4. Connect the battery negative cable.
