Circuit Schematic

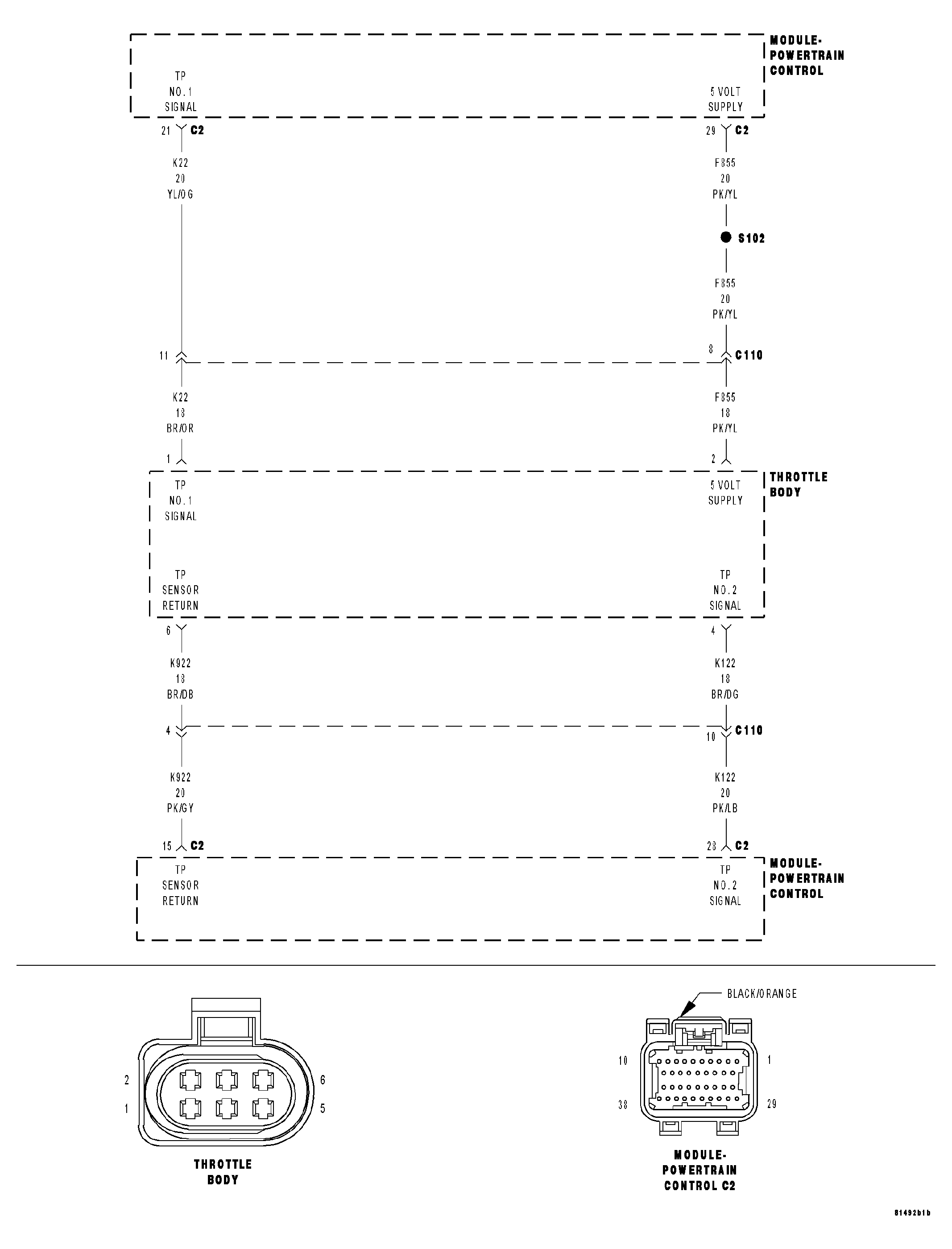

Fig 1: Throttle Position Sensor Circuit Schematic

GC0011526

Courtesy of DAIMLERCHRYSLER CORP.
