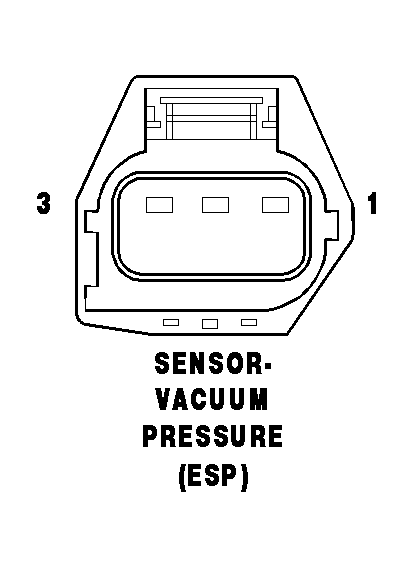

Vacuum Pressure Sensor (Electronic Stability Program) Connector End View
SENSOR-VACUUM PRESSURE (ESP) - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B32 20DG/BK |
VACUUM PRESSURE SENSOR SIGNAL |
| 2 |
B33 20DG/BR |
VACUUM PRESSURE SENSOR RETURN |
| 3 |
B31 20DG |
VACUUM PRESSURE SENSOR SUPPLY |
