Right Front Window Motor Connector End View

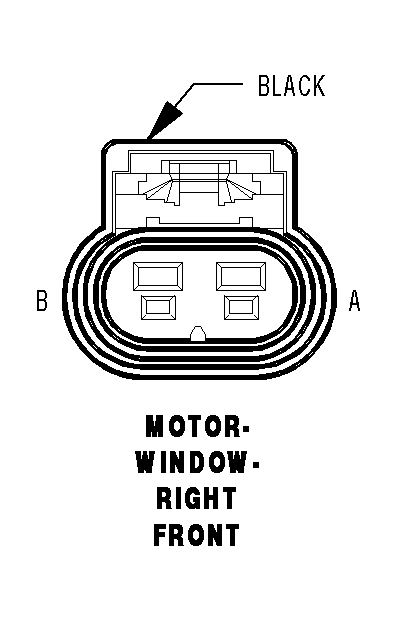

Right Front Window Motor Connector End View
MOTOR-WINDOW-RIGHT FRONT - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
A
Q12 14OR/BR
RIGHT FRONT WINDOW DRIVER (UP)
B
Q22 14WT/PK
RIGHT FRONT WINDOW DRIVER (DOWN)
Courtesy of DAIMLERCHRYSLER CORP.
