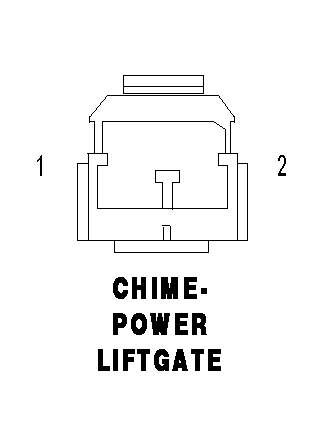

Power Liftgate Chime Connector End View
Power Liftgate Chime Connector End View
CHIME-POWER LIFTGATE - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z945 20BK
GROUND
2
Q94 20TN/LG
LIFTGATE CHIME DRIVER
