Positive Battery Connector End View

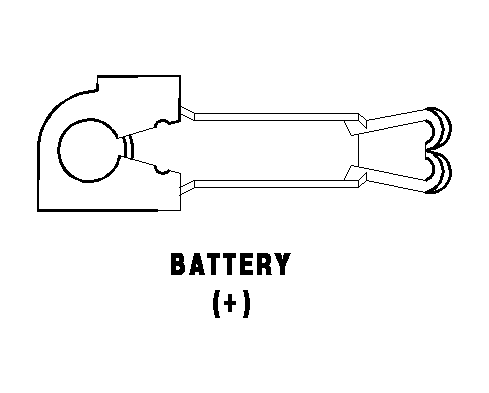

BATTERY (+) - 1 WAY

GCHB680021Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 A1 04RD B(+)
1 A1 06RD B(+)
