Liftgate Ajar Switch Connector End View
Liftgate Ajar Switch Connector End View

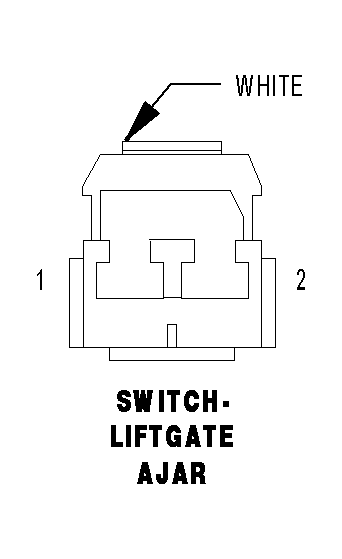

SWITCH-LIFTGATE AJAR - WHITE 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z922 20BK/PK
GROUND
2
G78 20VT/OR
LIFTGATE AJAR SWITCH SENSE
Courtesy of DAIMLERCHRYSLER CORP.
