Left Front Wheel Speed Sensor Connector End View
Left Front Wheel Speed Sensor Connector End View

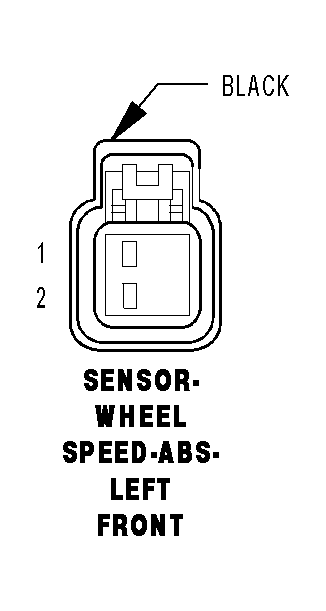

SENSOR-WHEEL SPEED-ABS-LEFT FRONT - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B9 20DG/LG
LEFT FRONT WHEEL SPEED SENSOR (+)
2
B8 20DG/TN
LEFT FRONT WHEEL SPEED SENSOR (-)
