Ignition Capacitor Connector End View

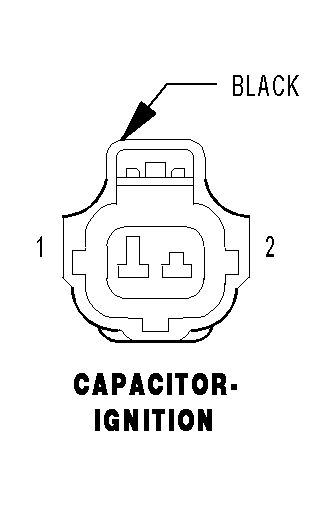

CAPACITOR-IGNITION - BLACK 2 WAY

GCHB680407Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 A955 16RD ASD RELAY OUTPUT
2 - -
