Generator Connector End View

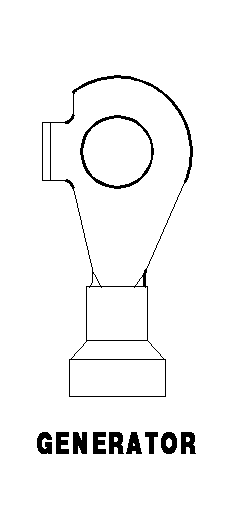

GENERATOR - 1 WAY

GCHB680109Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 A1 04RD B(+)

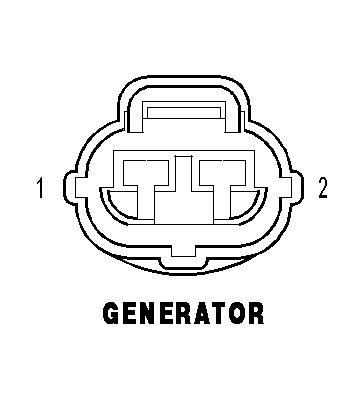

GENERATOR - 2 WAY

GCHB680110Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K20 18BR/GY GEN FIELD CONTROL
2 Z20 18BK/RD GROUND
