Front Rear Washer Fluid Level Sensor Connector End View

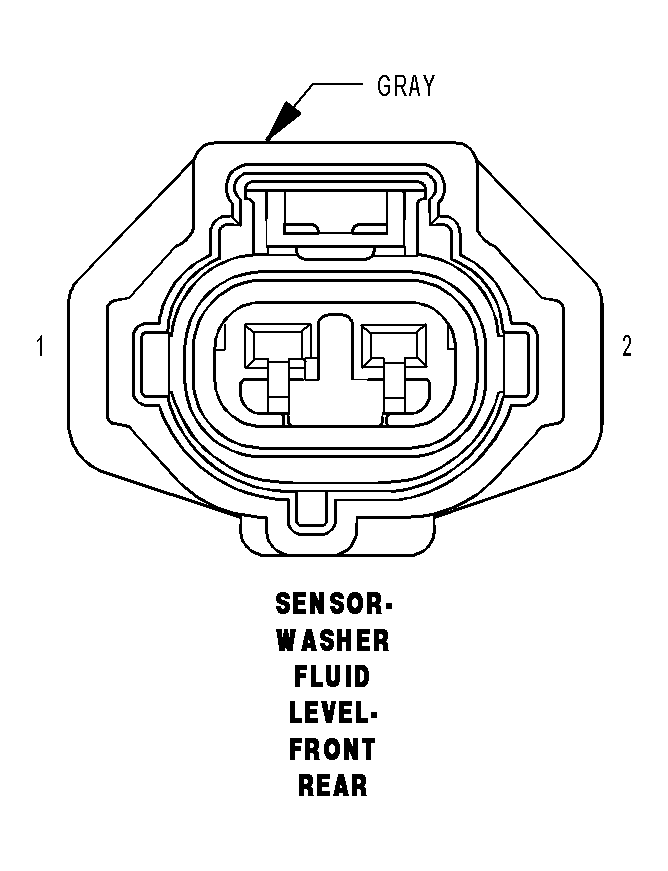

SENSOR-WASHER FLUID LEVEL-FRONT REAR - GRAY 2 WAY

GCHB680596Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 G180 20VT/YL FCM SENSOR RETURN
2 W1 20BR/TN FRONT WASHER PUMP MOTOR CONTROL
