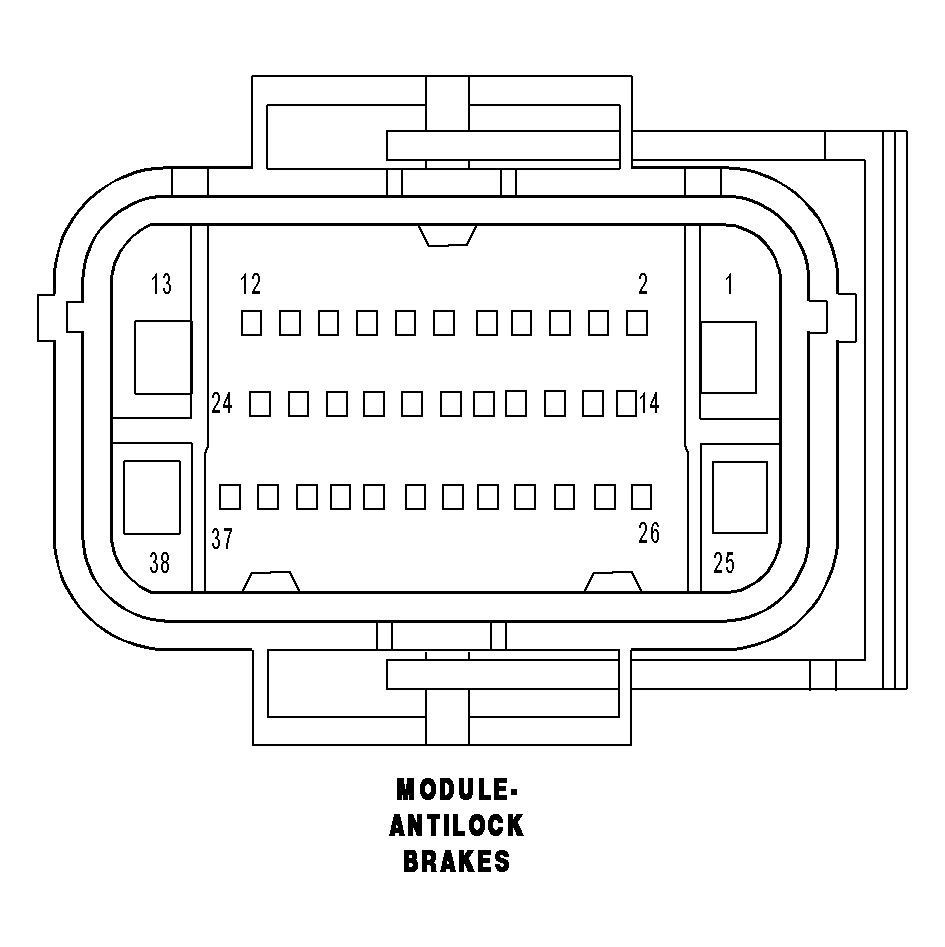

Antilock Brakes Module Connector End View
MODULE-ANTILOCK BRAKES - 38 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A107 12TN/RD | FUSED B(+) (PUMP) |
| 2 | - | - |
| 3 | B132 20DG/LB (ESP) | ACTIVE BRAKE BOOSTER (-) |
| 4 | - | - |
| 5 | - | - |
| 6 | B6 20DG/WT | RIGHT FRONT WHEEL SPEED SENSOR (-) |
| 7 | - | - |
| 8 | - | - |
| 9 | B31 20DG (ESP) | VACUUM PRESSURE SENSOR SUPPLY |
| 10 | B32 20DG/BK (ESP) | VACUUM PRESSURE SENSOR SIGNAL |
| 11 | - | - |
| 12 | - | - |
| 13 | Z107 12BK/DG | GROUND |
| 14 | D64 20WT/LB | CAN C BUS (-) |
| 15 | - | - |
| 16 | B131 20DG/YL (ESP) | ACTIVE BRAKE BOOSTER (+) |
| 17 | - | - |
| 18 | B7 20DG/VT | RIGHT FRONT WHEEL SPEED SENSOR (+) |
| 19 | B2 20DG/LB | RIGHT REAR WHEEL SPEED SENSOR (+) |
| 20 | B3 20DG/YL | LEFT REAR WHEEL SPEED SENSOR (-) |
| 21 | B9 20DG/LG | LEFT FRONT WHEEL SPEED SENSOR (+) |
| 22 | - | - |
| 23 | - | - |
| 24 | D264 20WT (ESP) | DYNAMICS SENSOR LOW DATA LINK |
| 25 | A111 18DG/RD | FUSED B(+) (VALVE) |
| 26 | D65 20YL/RD | CAN C BUS (+) |
| 27 | - | - |
| 28 | B33 20DG/BR (ESP) | VACUUM PRESSURE SENSOR RETURN |
| 29 | - | - |
| 30 | B29 20DG/WT | BRAKE SWITCH NO. 1 SIGNAL |
| 31 | B1 20DG/DB | RIGHT REAR WHEEL SPEED SENSOR (-) |
| 32 | F500 20DG/PK | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 33 | B4 20LG/GY | LEFT REAR WHEEL SPEED SENSOR (+) |
| 34 | B8 20DG/TN | LEFT FRONT WHEEL SPEED SENSOR (-) |
| 35 | - | - |
| 36 | B45 20DG/LB (ESP) | STOP LAMP INHIBIT RELAY CONTROL |
| 37 | D265 20WT/BK (ESP) | DYNAMICS SENSOR HIGH DATA LINK |
| 38 | Z923 12BK | GROUND |
