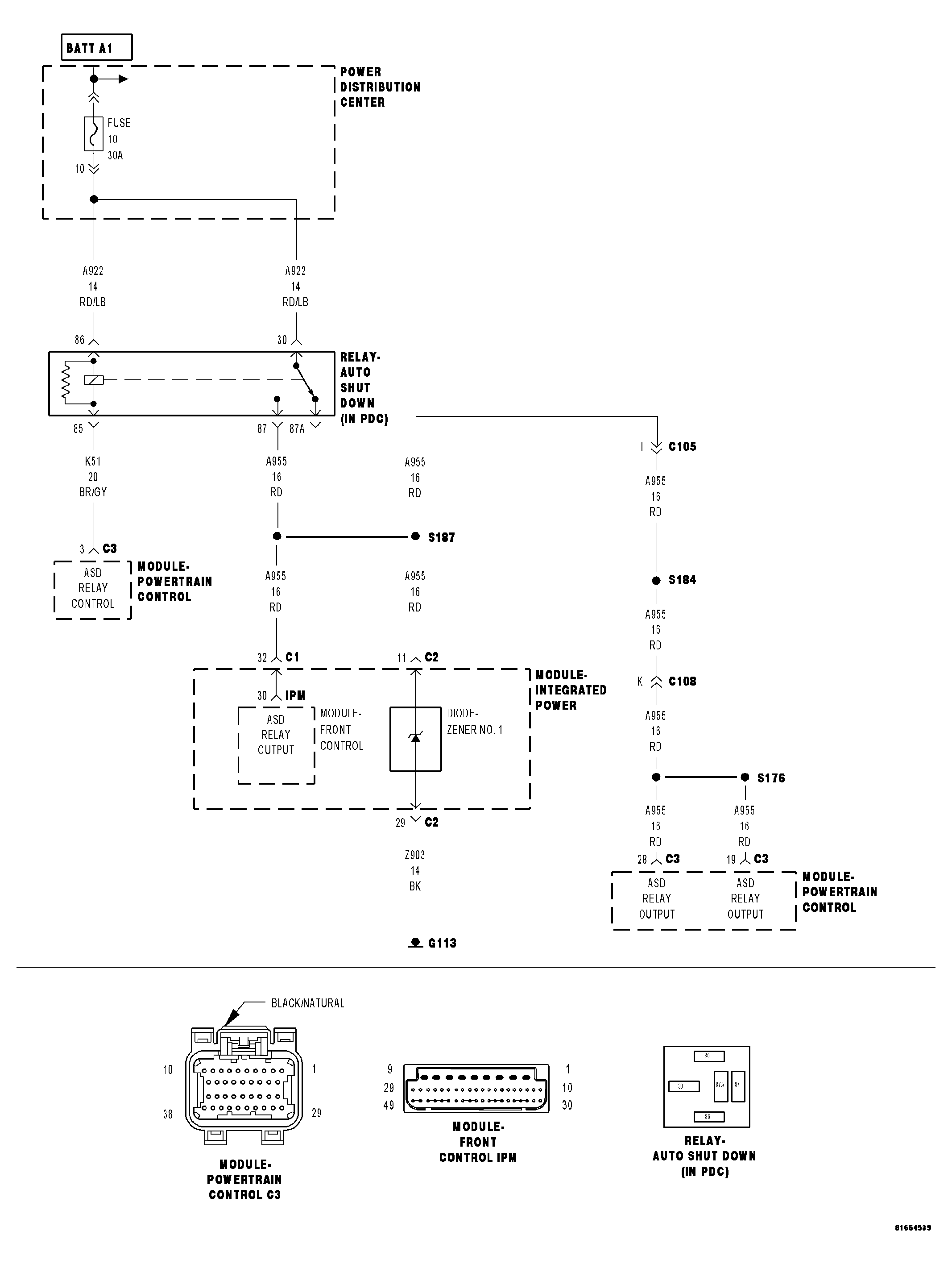

Home >> Dodge and Ram >> 2006 >> Durango 3.7 K, 42RLE/VLP >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0627 To P1414 >> Diagnosis And Testing >> P0685-Auto Shutdown Relay Control Circuit >> Circuit Schematic
