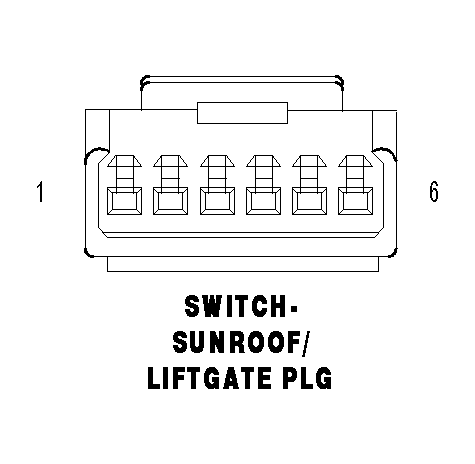

Sunroof Switch/Liftgate Switch (Power Liftgate) Connector End View
SWITCH-SUNROOF/LIFTGATE PLG - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Q4 20OR/YL |
SUNROOF VENT |
| 2 |
Z957 20BK |
GROUND |
| 3 |
Q3 20OR/TN |
SUNROOF OPEN |
| 4 |
Q5 20OR/LB |
SUNROOF CLOSE |
| 5 |
Z957 20BK |
GROUND |
| 6 |
G25 20VT/TN |
LIFTGATE SWITCH SENSE |
