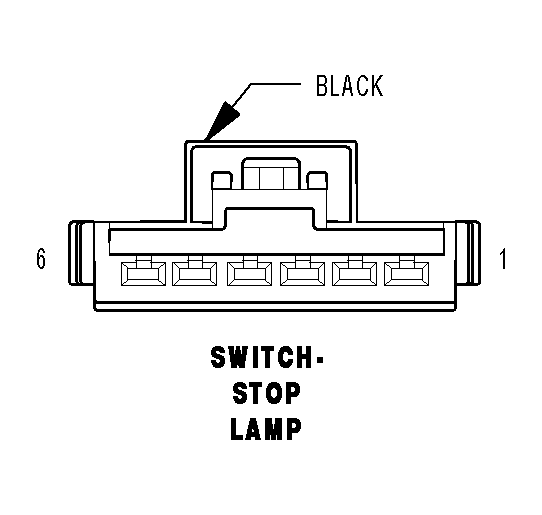

Stop Lamp Switch Connector End View
SWITCH-STOP LAMP - BLACK 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A103 18GY/RD | FUSED B(+) |
| 2 | L950 18WT/LG (ESP) | BRAKE LAMP SWITCH OUTPUT |
| 2 | L50 18WT/LG (EXCEPT ESP) | BRAKE LAMP SWITCH SIGNAL |
| 3 | V30 20VT/WT (3.7L/4.7L) | S/C BRAKE SWITCH OUTPUT |
| 3 | F202 20VT/WT (5.7L) | FUSED IGNITION SWITCH OUTPUT |
| 4 | V32 20VT/YL (3.7L/4.7L) | S/C SUPPLY |
| 4 | V32 20VT/YL (5.7L) | BRAKE SWITCH NO. 2 SIGNAL |
| 5 | Z429 20BK/OR | GROUND |
| 6 | B29 20DG/WT | BRAKE SWITCH NO. 1 SIGNAL |
