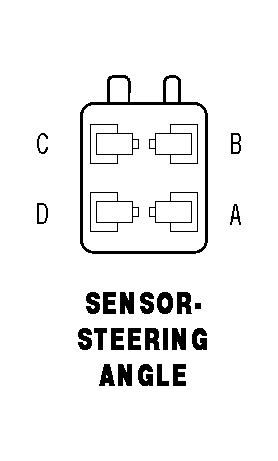

Steering Angle Sensor Connector End View
SENSOR-STEERING ANGLE - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
D65 20YL/RD |
CAN C BUS (+) |
| B |
Z455 20BK/LB |
GROUND |
| C |
D64 20WT/LB |
CAN C BUS (-) |
| D |
F500 20DG/PK |
FUSED IGNITION SWITCH OUTPUT (RUN) |
