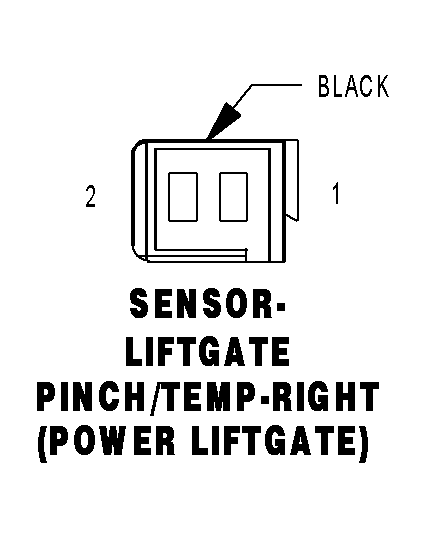

Right Liftgate Pinch Sensor/Temperature Sensor (Power Liftgate) Connector End View
SENSOR-LIFTGATE PINCH/TEMP-RIGHT (POWER LIFTGATE) - 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Q78 20OR/DB |
RIGHT PINCH SENSOR SIGNAL |
| 2 |
Q901 20OR/BR |
LOGIC GROUND |
