Power Liftgate Module Connector End View (C3)

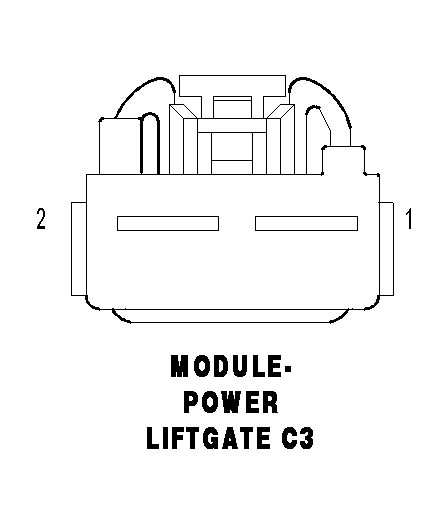

MODULE-POWER LIFTGATE C3 - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z125 12BK/OR	GROUND
2	A115 12YL/RD	FUSED B(+)
