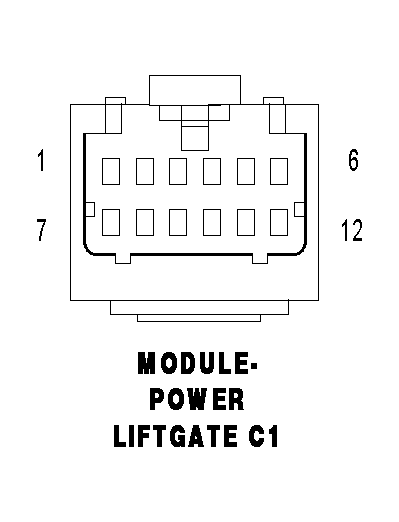

Power Liftgate Module Connector End View (C1)
MODULE-POWER LIFTGATE C1 - 12 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q204 20OR/DG | POSITION SENSOR SIGNAL 1 |
| 2 | Q203 20OR/TN | POSITION SENSOR SUPPLY |
| 3 | - | |
| 4 | Q201 20OR/LG | LIFTGATE CLUTCH DRIVER |
| 5 | Q88 14TN/BR | LIFTGATE OPEN DRIVER |
| 6 | Q89 14TN/OR | LIFTGATE CLOSE DRIVER |
| 7 | Q205 20OR/DB | POSITION SENSOR SIGNAL 2 |
| 8 | - | |
| 9 | - | |
| 10 | - | |
| 11 | - | |
| 12 | Q51 20OR | LIFTGATE FULL OPEN SWITCH SENSE |
