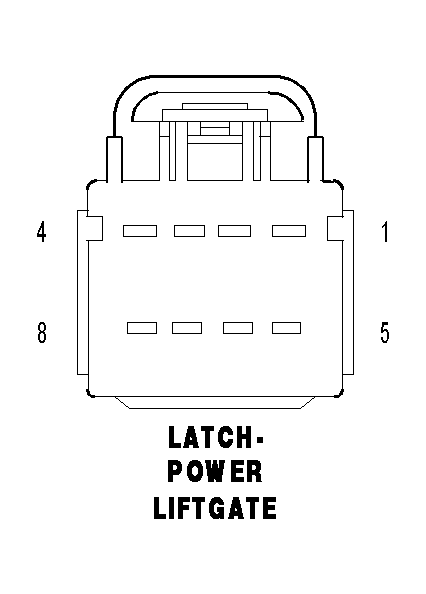

Power Liftgate Latch Connector End View
LATCH-POWER LIFTGATE - 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q85 18TN/WT | LIFTGATE LATCH RELEASE DRIVER |
| 2 | Q79 20OR | SECTOR SWITCH SENSE |
| 3 | P30 20TN/DG | LIFTGATE HANDLE SWITCH SENSE |
| 4 | Q84 18TN/GY | LIFTGATE LATCH CINCH DRIVER |
| 5 | Q901 20OR/BR | LOGIC GROUND |
| 6 | Q76 20OR/BK | LATCH SECONDARY POSITION SENSE |
| 7 | G78 20VT/OR | LIFTGATE AJAR SWITCH SENSE |
| 8 | Q60 20OR/YL | LIFTGATE PAWL SWITCH SENSE |
