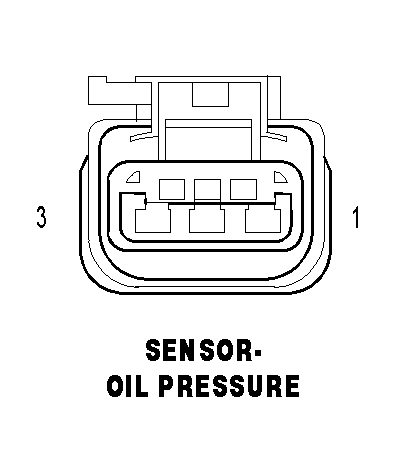

Oil Pressure Sensor Connector End View
Oil Pressure Sensor Connector End View
SENSOR-OIL PRESSURE
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
F855 20PK/YL
5 VOLT SUPPLY
2
G6 18VT/GY
ENGINE OIL PRESSURE SIGNAL
3
K900 20DB/DG
SENSOR GROUND
