Liftgate Release Power Liftgate Switch Connector End View
Liftgate Release Power Liftgate Switch Connector End View

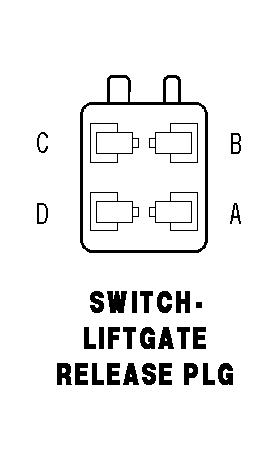

SWITCH-LIFTGATE RELEASE PLG - 4 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
A
-
-
B
G25 20VT/TN
LIFTGATE SWITCH SENSE
C
Z957 20BK
GROUND
D
-
-
