Intake Air Temperature Sensor Connector End View

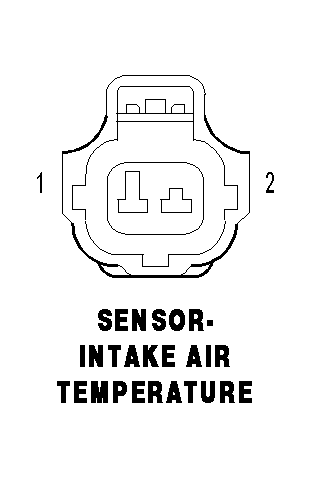

Intake Air Temperature Sensor Connector End View
SENSOR-INTAKE AIR TEMPERATURE - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K21 20BR/WT
IAT SIGNAL
2
K900 20DB/DG
SENSOR GROUND
Courtesy of DAIMLERCHRYSLER CORP.
