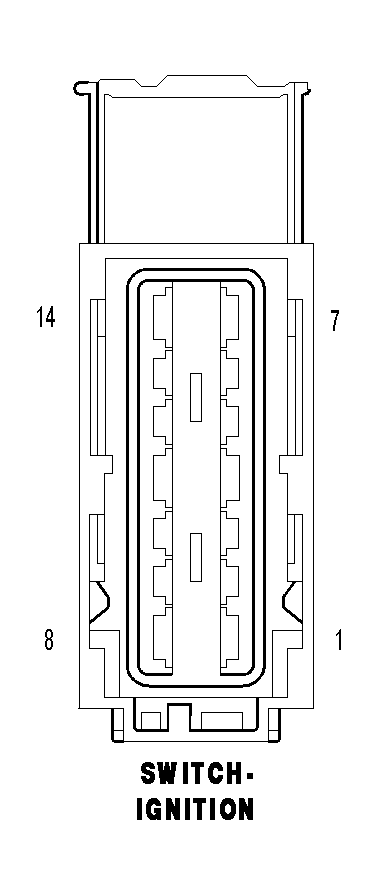

Ignition Switch Connector End View
SWITCH-IGNITION - BLACK 14 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | G121 18VT | IGNITION SWITCH OUTPUT RUN SENSE |
| 1 | G121 20VT | IGNITION SWITCH OUTPUT RUN SENSE |
| 2 | F901 14PK | IGNITION SWITCH OUTPUT (OFF-RUN-START) |
| 3 | F941 14PK/LG | IGNITION SWITCH OUTPUT (RUN-START) |
| 4 | A923 14RD/OR | FUSED B(+) |
| 5 | G15 20VT/TN | KEY-IN IGNITION SWITCH SENSE |
| 6 | Z943 20BK | GROUND |
| 7 | A917 12RD/BR | FUSED B(+) |
| 8 | Z932 20BK | GROUND |
| 8 | Z932 18BK | GROUND |
| 9 | F984 14PK/TN | IGNITION SWITCH OUTPUT (RUN-ACC) |
| 10 | F983 16PK/VT | IGNITION SWITCH OUTPUT (RUN-ACC) |
| 11 | A904 14RD/GY | FUSED B(+) |
| 12 | A953 16RD/YL | FUSED B(+) |
| 13 | F961 14PK/LB | IGNITION SWITCH OUTPUT (START) |
| 14 | F921 12PK/YL | IGNITION SWITCH OUTPUT (RUN) |
