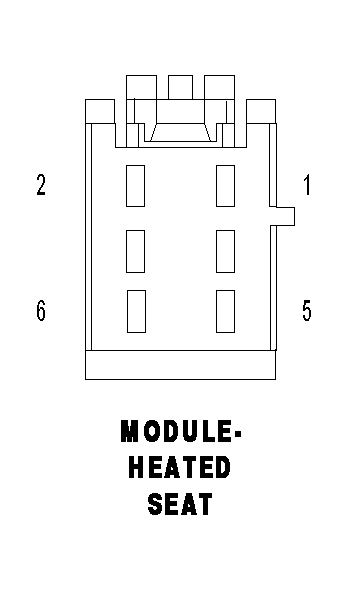

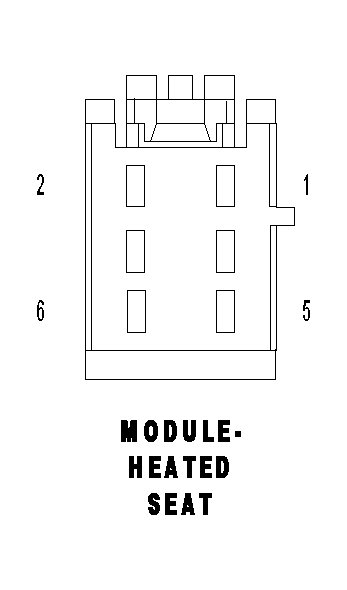

Heated Seat Module Connector End View
MODULE-HEATED SEAT - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z387 12BK |
GROUND |
| 2 |
A940 12RD/GY |
FUSED B(+) |
| 3 |
P187 18LG/BR |
DRIVER SEAT HEATER B(+) DRIVER |
| 4 |
P188 18LG/VT |
PASSENGER SEAT HEATER B(+) DRIVER |
| 5 |
D54 20WT |
CAN B BUS (-) |
| 6 |
D55 20WT/OR |
CAN B BUS (+) |
