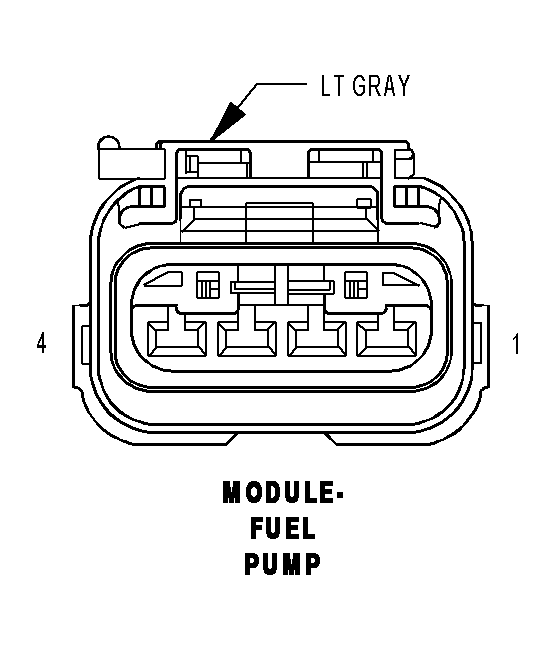

Fuel Pump Module Connector End View
MODULE-FUEL PUMP - LT GRAY 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z938 18BK |
GROUND |
| 2 |
N5 20DB/WT |
FUEL LEVEL SENSOR RETURN |
| 3 |
N4 20DB/YL |
FUEL LEVEL SENSOR NO. 1 SIGNAL |
| 4 |
N1 18DB/OR |
FUEL PUMP RELAY OUTPUT |
