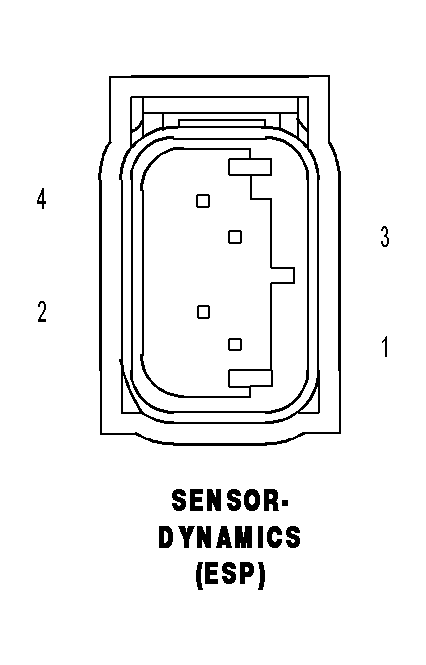

Dynamics Sensor (Electronic Stability Program) Connector End View
SENSOR-DYNAMICS (ESP) - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z608 20BK |
GROUND |
| 2 |
D264 20WT |
DYNAMICS SENSOR LOW DATA LINK |
| 3 |
D265 20WT/BK |
DYNAMICS SENSOR HIGH DATA LINK |
| 4 |
F500 20DG/PK |
FUSED IGNITION SWITCH OUTPUT (RUN) |
