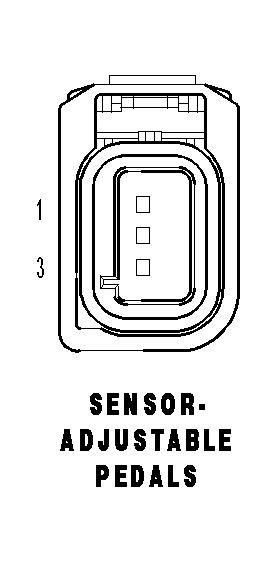

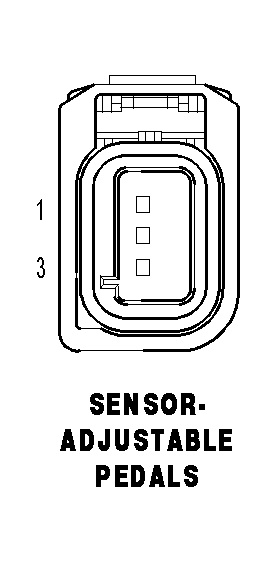

Adjustable Pedals Sensor Connector End View
SENSOR-ADJUSTABLE PEDALS - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G912 20VT/WT |
ADJUSTABLE PEDALS SENSOR RETURN |
| 2 |
G12 20VT/BR |
ADJUSTABLE PEDALS SENSOR SIGNAL |
| 3 |
G11 20VT/TN |
ADJUSTABLE PEDALS SENSOR SUPPLY |
