Body & Frame: Windows: Interior/Exterior: Hood: Latch: Installation

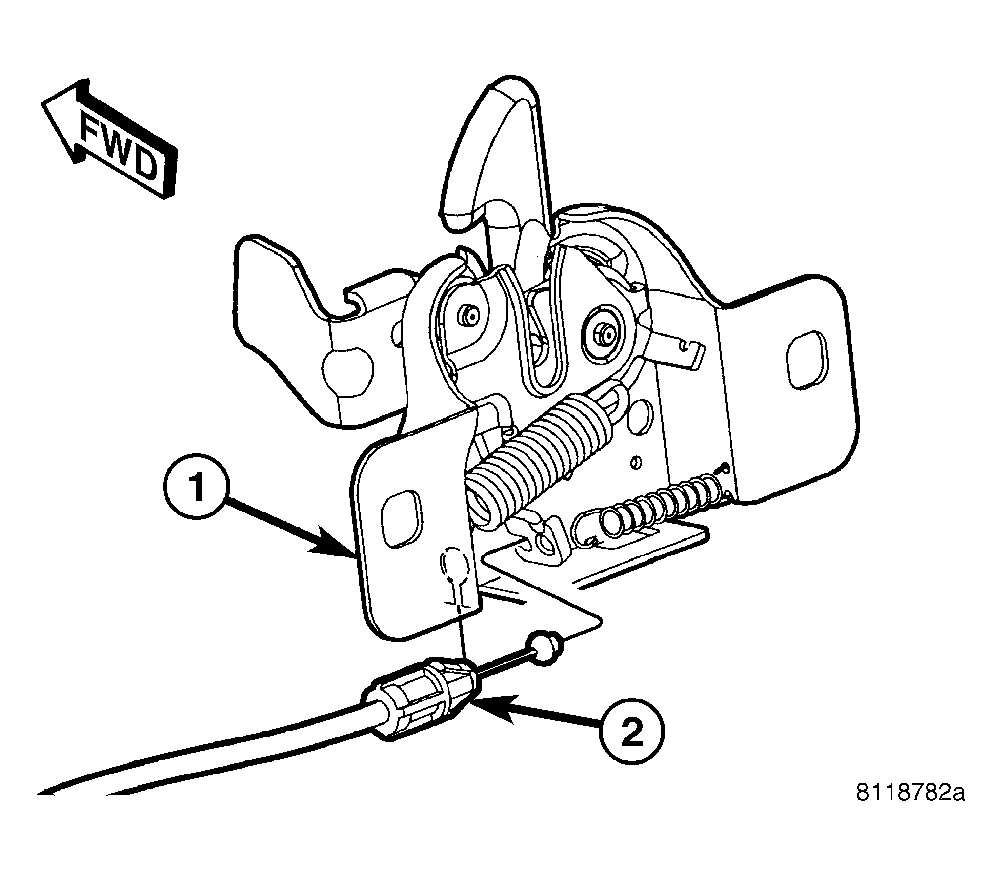

Fig 1: Cable Disconnect

Courtesy of DAIMLERCHRYSLER CORP.

1. Connect release cable (2) to the hood latch (1).

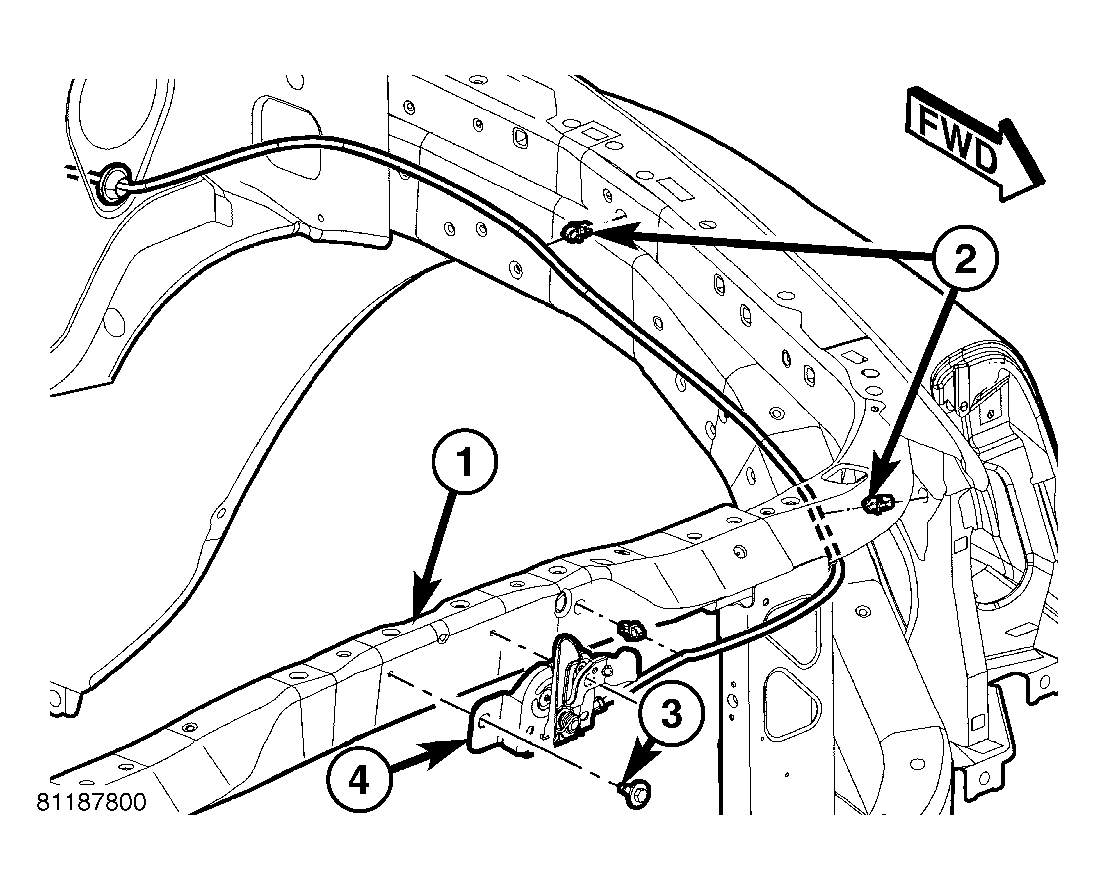

   Fig 2: Hood Latch

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install the latch (4) lining up the marks made previously and install the bolts (3).
3. Tighten the bolts to 11 N.m (8 ft. lbs.).
4. Close hood and adjust latch as necessary. (Refer to BODY/HOOD/LATCH - ADJUSTMENTS)
