Body & Frame: Windows: Interior/Exterior: DECKLID/Hatch/Liftgate/Tailgate: Striker: Removal

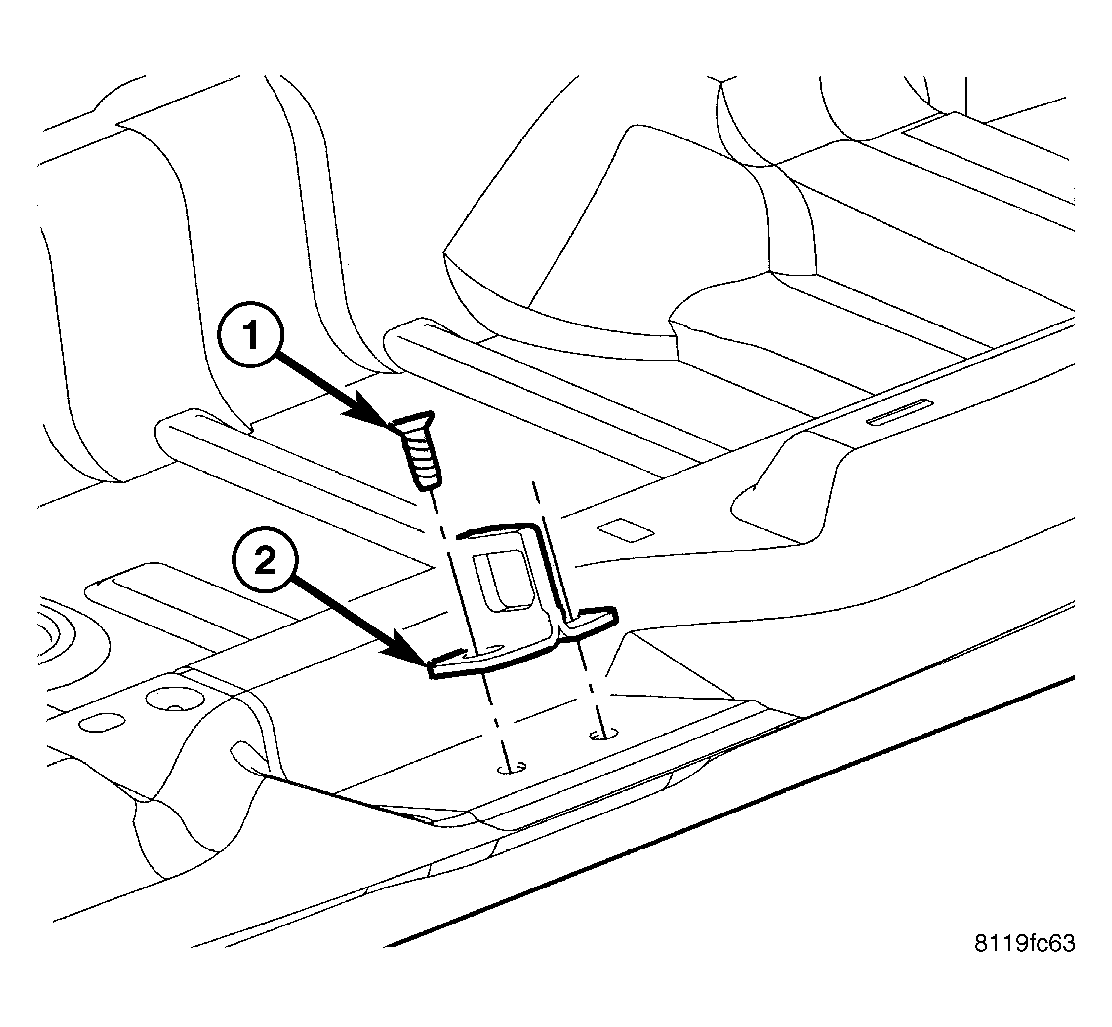

Fig 1: Striker

Courtesy of DAIMLERCHRYSLER CORP.

1. Open the load floor, remove the scuff plate screws and remove liftgate trim scuff plate.
2. Remove screws attaching liftgate striker to floor pan (1) and remove the striker.
