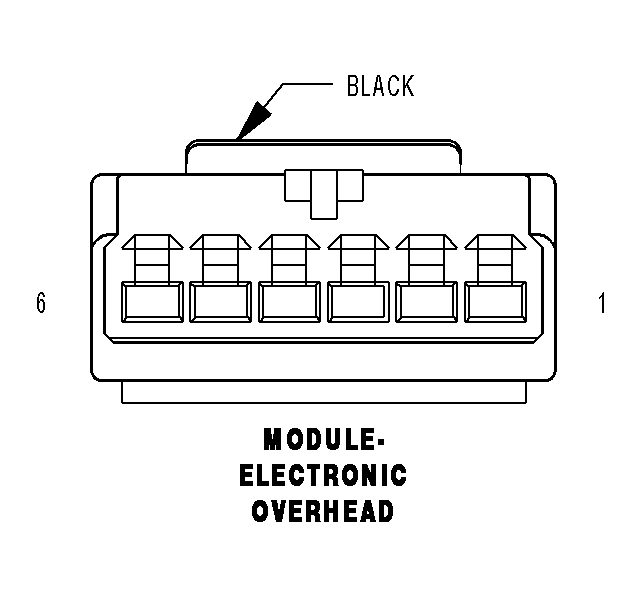

Electronic Overhead Module Connector End View
MODULE-ELECTRONIC OVERHEAD - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
A926 18RD |
FUSED B(+) |
| 3 |
D55 20WT/OR |
CAN B BUS (+) |
| 4 |
D54 20WT |
CAN B BUS (-) |
| 5 |
Z957 20BK (BASE) |
GROUND |
| 5 |
Z957 18BK (EXCEPT BASE) |
GROUND |
| 6 |
C83 20DB/LG |
INFRARED SENSOR SIGNAL |
