Module-Sentry Key Remote Entry: Installation

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

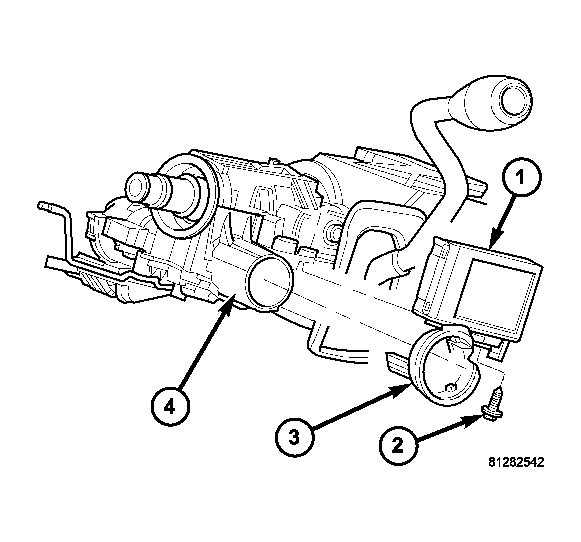

Fig 1: Removing/Installing Sentry Key Remote Entry Module

Courtesy of DAIMLERCHRYSLER CORP.

1. Position the Sentry Key Remote Entry Module (SKREEM) (1) onto the steering column with the antenna ring (3) oriented around the ignition lock cylinder housing (4).
2. Install and tighten the screw (2) that secures the SKREEM to the steering column housing. Tighten the screw to 2 N.m (20 in. lbs.).

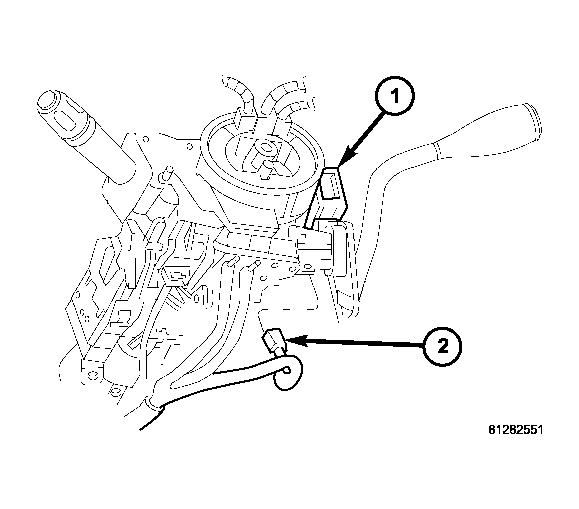

   Fig 2: Identifying Wire Harness Connector

   Courtesy of DAIMLERCHRYSLER CORP.
3. Reconnect the wire harness connector (2) to the SKREEM (1).
   Fig 3: Removing/Installing Steering Column Shrouds

   Courtesy of DAIMLERCHRYSLER CORP.
4. Position the lower shroud (3) onto the steering column (4).
5. From below the steering column, install and tighten the one center screw that secures the lower shroud to the steering column. Tighten the screw to 2 N.m (20 in. lbs.).
6. Position the upper shroud (1) onto the steering column over the lower shroud. On vehicles equipped with an automatic transmission, be certain to engage the gearshift lever gap hider into the opening in the right side of both shroud halves.
7. Align the snap features on the upper shroud with the receptacles in the lower shroud and apply hand pressure to snap them together.
8. Install and tighten the two outboard screws that secure the upper shroud to the lower shroud. Tighten the screws to 2 N.m (20 in. lbs.).
   Fig 4: Identifying Tilt Steering Column Knob And Screw

   Courtesy of DAIMLERCHRYSLER CORP.
9. Position the tilt steering column knob (1) onto the tilt adjuster actuator (3) on the left side of the steering column, then install and tighten the screw (2) to secure the knob to the actuator. Tighten the screw to 2 N.m (20 in. lbs.).
10. Reconnect the battery negative cable.

NOTE: On vehicles equipped with the optional Sentry Key Immobilizer System (SKIS) if the SKREEM is replaced with a new unit, a diagnostic scan tool MUST be used to initialize the new SKREEM and to program at least two Sentry Key transponders before the vehicle can be operated. (Refer to ELECTRICAL/VEHICLE THEFT SECURITY - STANDARD PROCEDURE - SKIS INITIALIZATION) .
