Stabilizer Link: Installation

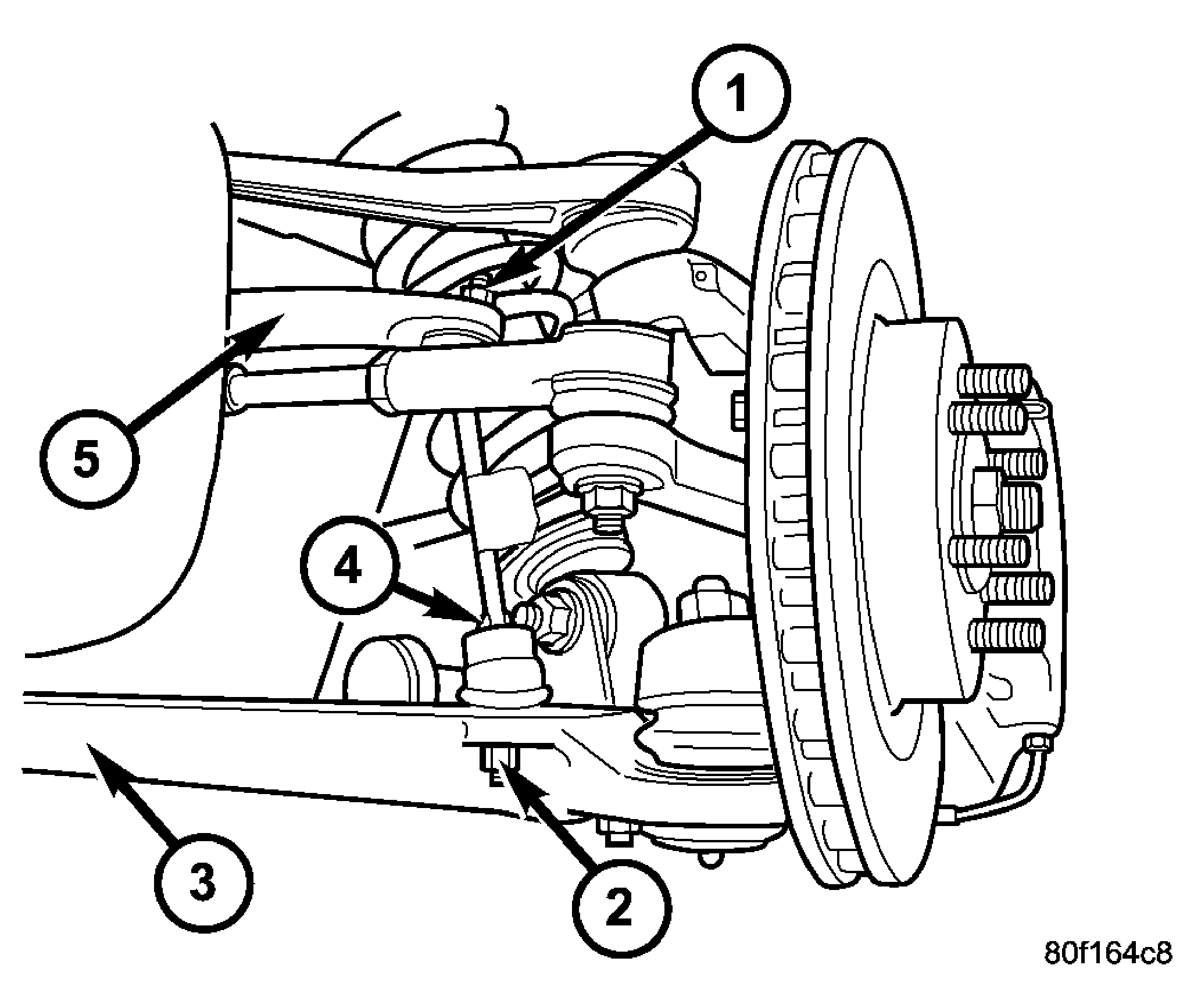

  1. Install stabilizer bar link into mounting hole on lower control arm and install attaching nut. See Figure. Tighten attaching nut to 23 N.m (17 ft. lbs.) torque.
  2. Install end of stabilizer bar onto stabilizer bar link and install attaching nut. See Figure. Tighten attaching nut to 23 N.m (17 ft. lbs.) torque.
  3. Install wheel and tire assembly (Refer to TIRES/WHEELS - INSTALLATION) . Progressively tighten wheel mounting nuts in proper sequence to 122 N.m (90 ft. lbs.) torque.
  4. Lower vehicle.
