Stabilizer Bar: Installation

  1. Thoroughly clean stabilizer bar in area of bushing contact. Install each NEW bushing on stabilizer bar by opening slit in bushing and wrapping it around stabilizer bar, positioning it against retainer ring on bar.
  2. Slide bushing retainers over bushings.
  3. Install stabilizer bar assembly back into vehicle in reverse order of removal through wheel opening.

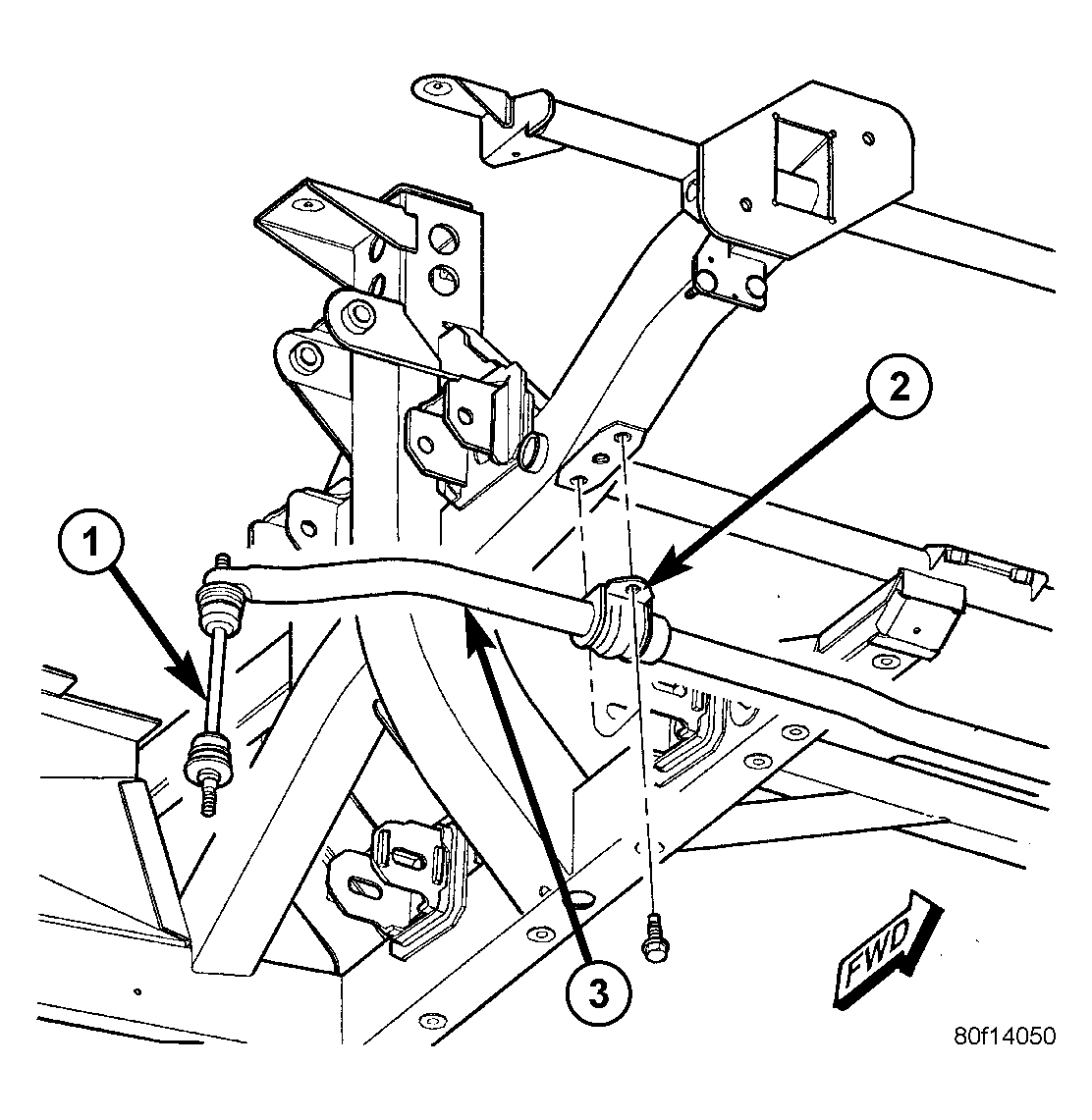

  4. Position bushing retainers against frame rails, then install four retainer bolts. See Figure. DO NOT TIGHTEN AT THIS TIME.
  5. Install ends of stabilizer bar onto stabilizer bar link studs. Install attaching nuts. Tighten stabilizer bar link attaching nuts to 23 N.m (17 ft. lbs.) torque.
  6. Tighten four stabilizer bar bushing retainer bolts to 68 N.m (50 ft. lbs.) torque.
  7. Install wheel and tire assemblies (Refer to TIRES/WHEELS - INSTALLATION) . Progressively tighten wheel mounting nuts in proper sequence to 122 N.m (90 ft. lbs.) torque.
  8. Lower vehicle.
