Seat Belt Buckle: Installation

  1. Route wire through seat assembly and attach seat belt buckle and bolt to seat assembly. Torque bolts to 40 N.m (30 ft. lbs.).
  2. Place seat assembly in vehicle.

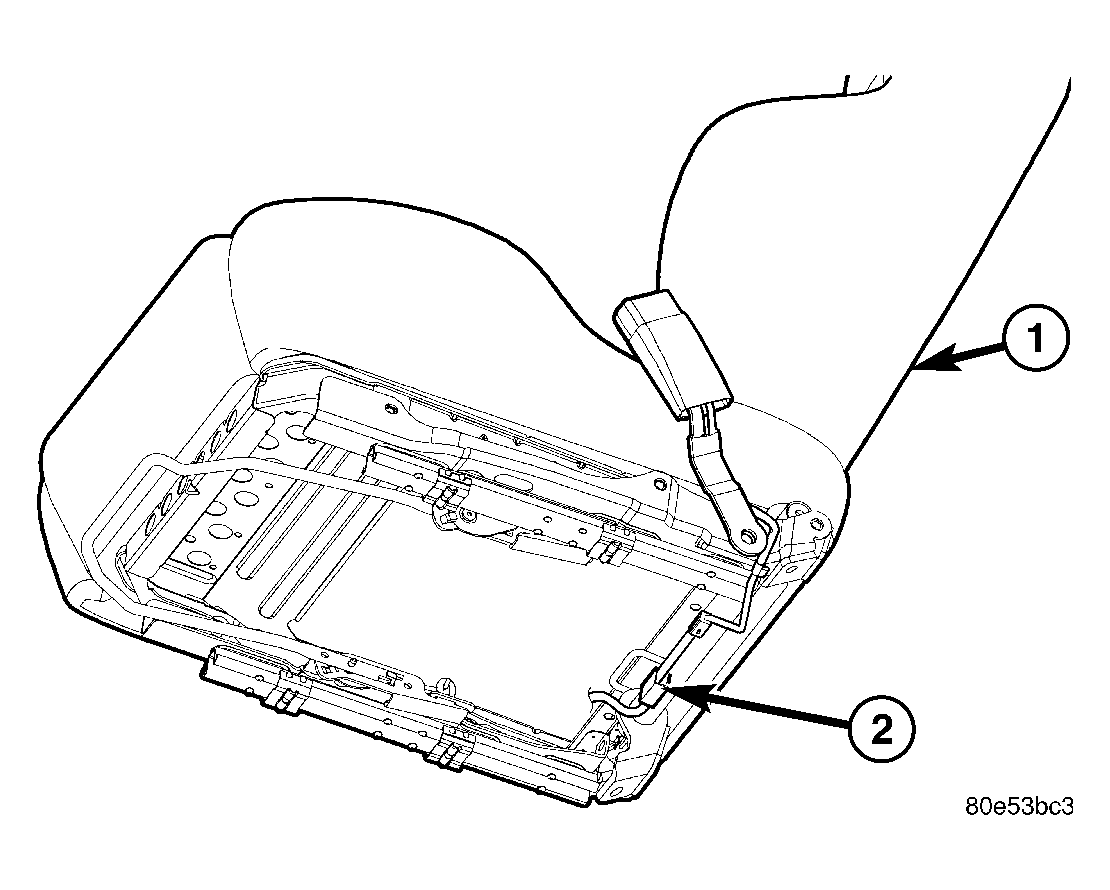

  3. Connect electrical connector. See Figure.

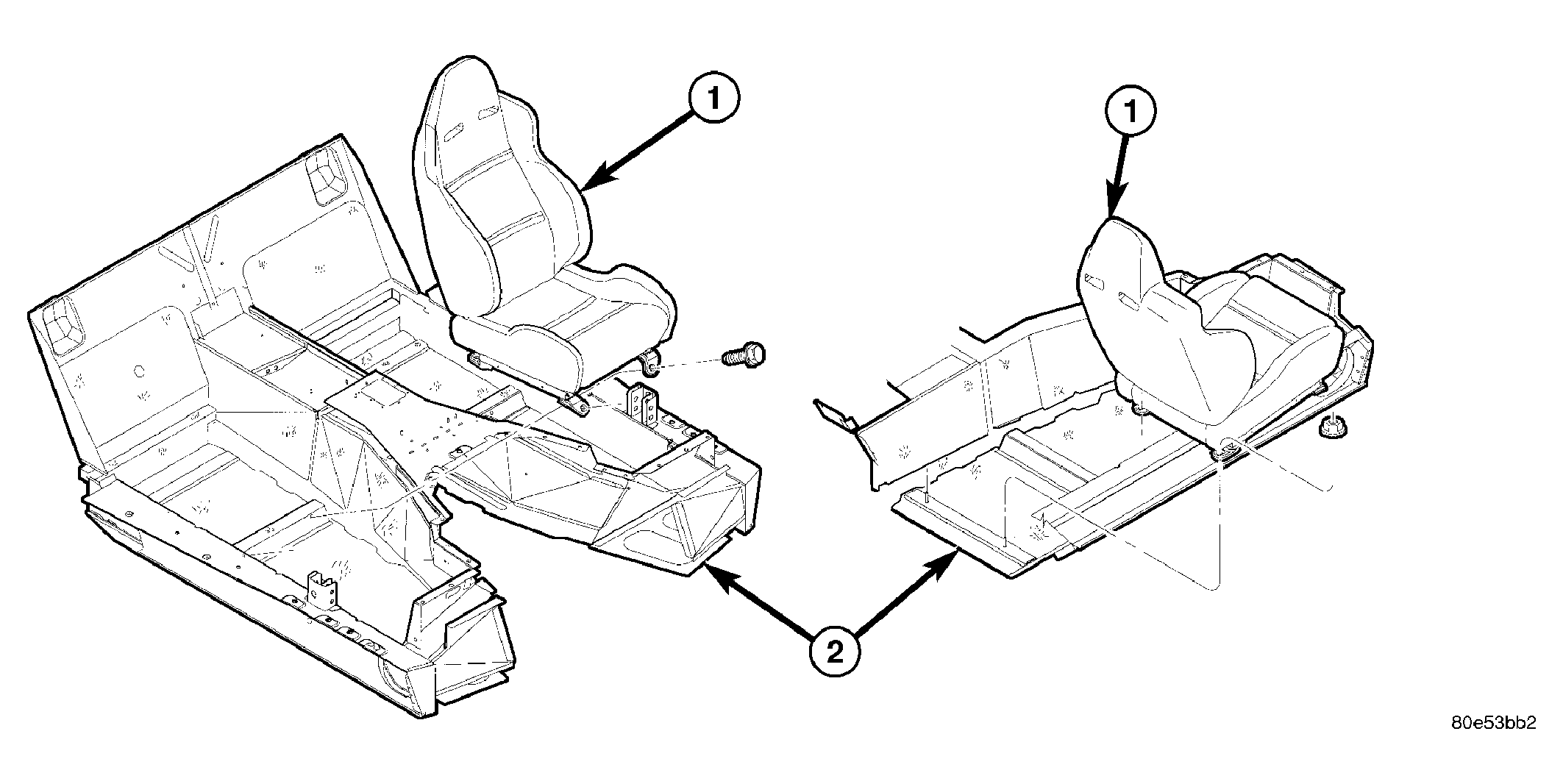

  4. Move seat as needed to install seat retaining bolts. See Figure. Torque bolts to 40 N.m (30 ft. lbs.).
  5. Connect the battery negative cable.
  6. Place battery access cover into place and install four bolts.
  7. Close deck lid.
  8. Verify vehicle and system operation.
