Push-Button Starter Switch - Natural 6 Way

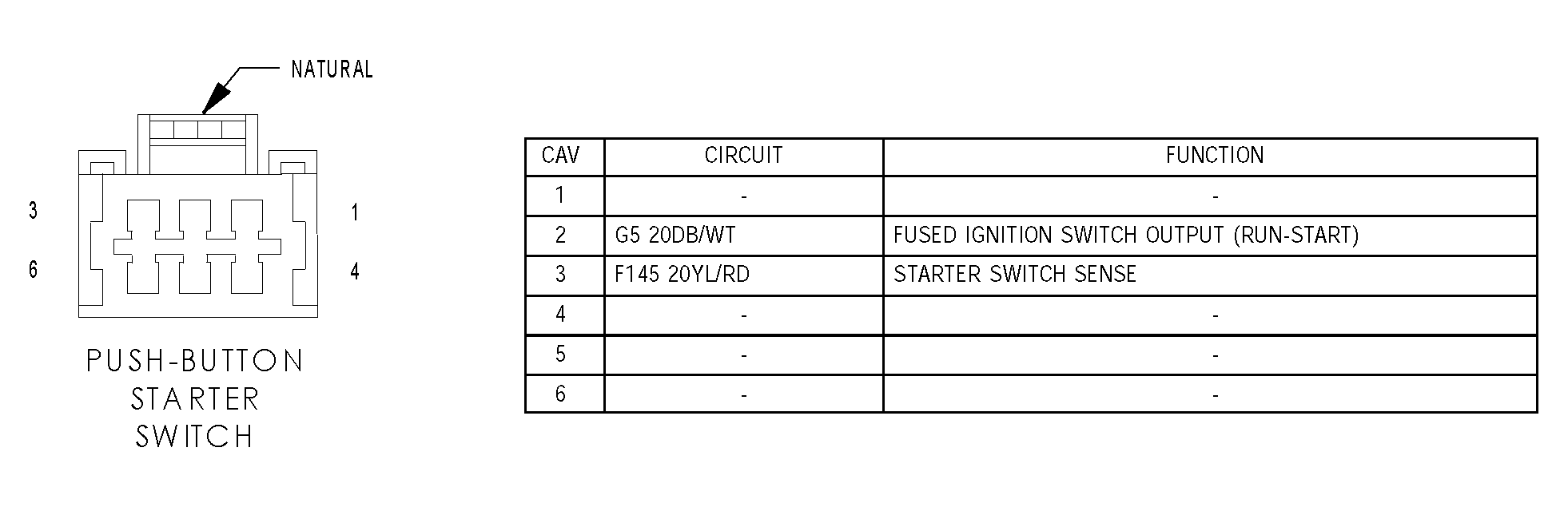

Fig 1: Identifying Push-Button Starter Switch - Natural 6 Way Connector Pinout

G04550359

Courtesy of DAIMLERCHRYSLER CORP.
