Powertrain Control Module C2 - Black/White 32 Way

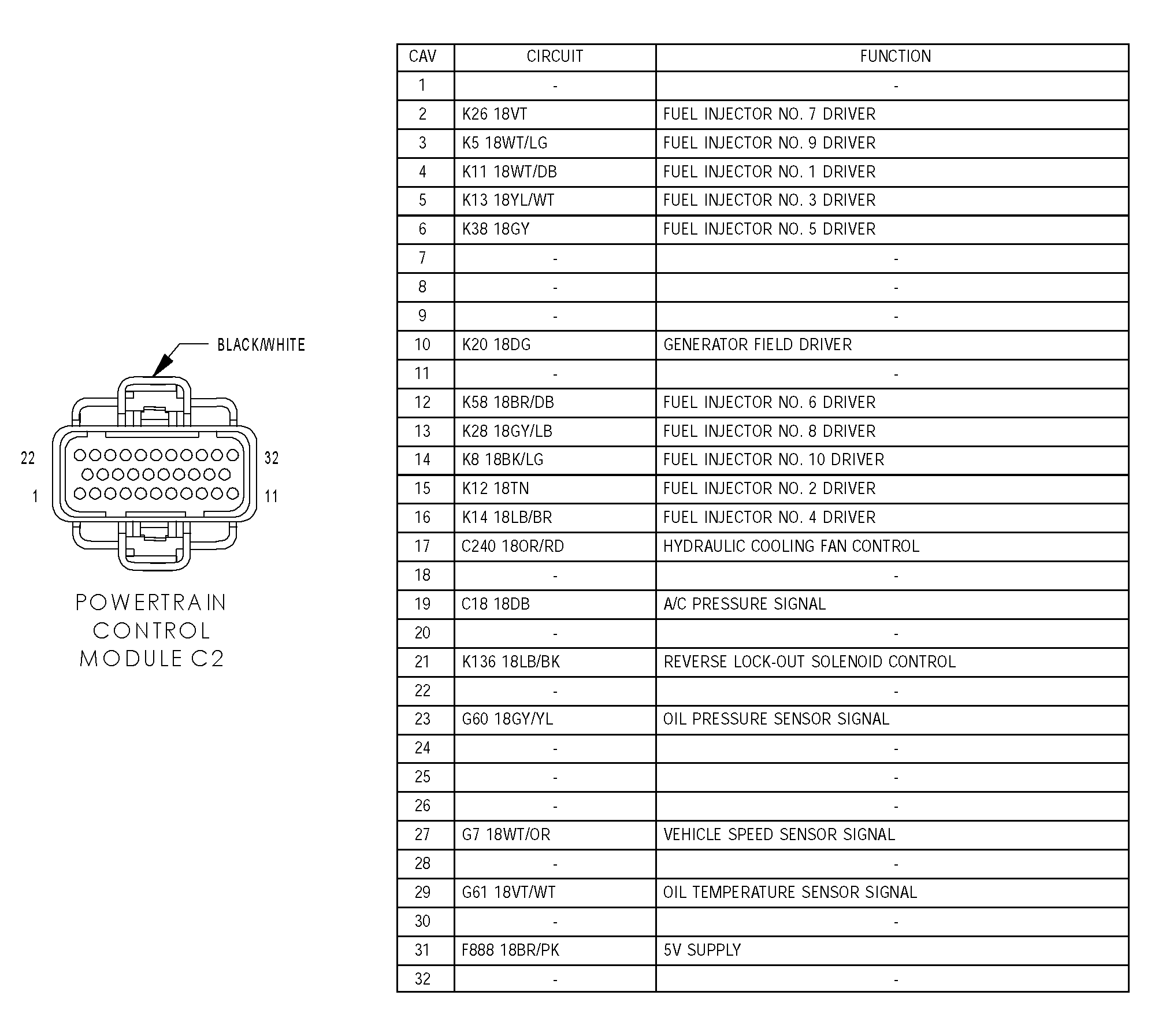

Fig 1: Identifying Powertrain Control Module C2 - Black/White 32 Way Connector Pinout

G04550357

Courtesy of DAIMLERCHRYSLER CORP.
