Powertrain Control Module C1 - Black/Black 32 Way

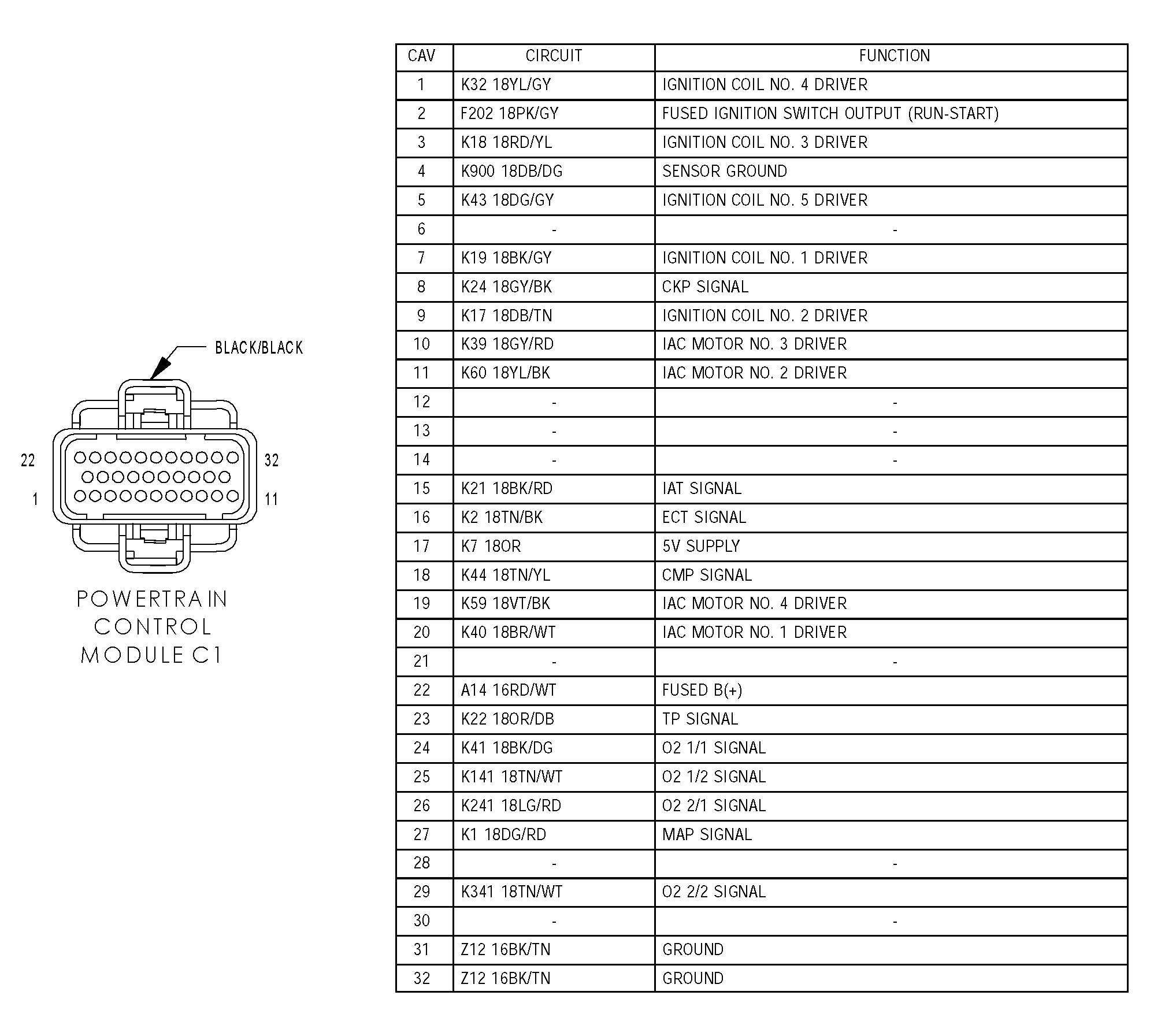

Fig 1: Identifying Powertrain Control Module C1 - Black/Black 32 Way Connector Pinout
G04550356Courtesy of DAIMLERCHRYSLER CORP.
