Fuel Tank Module - Gray 4 Way
Fuel Tank Module - Gray 4 Way

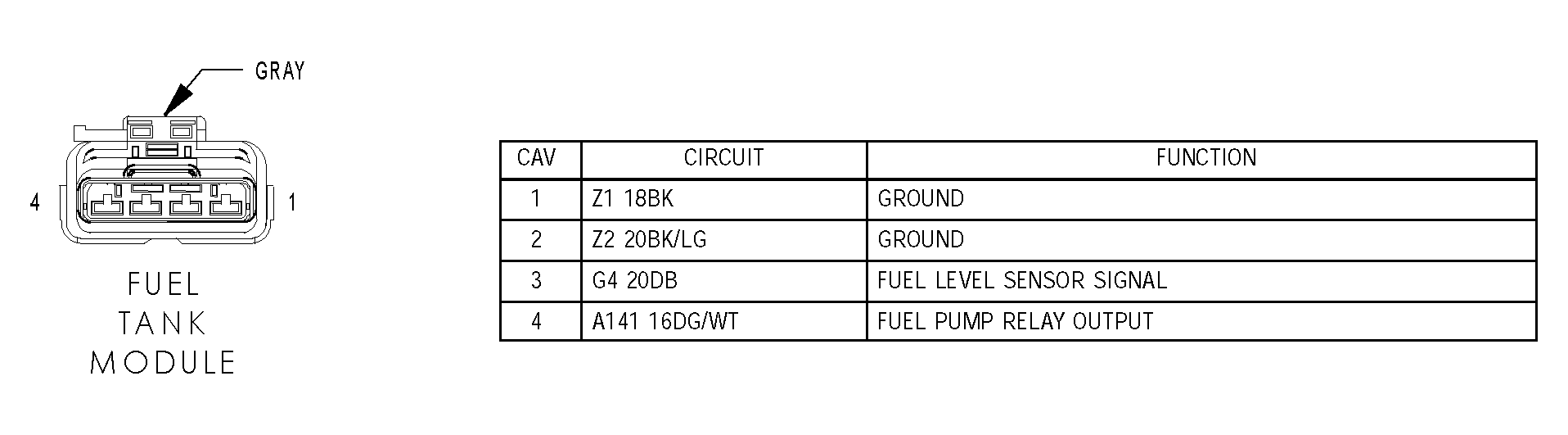

Fig 1: Identifying Fuel Tank Module - Gray 4 Way Connector Pinout
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
