Starter Motor: Removal

  1. Disconnect the negative battery cable. See Fig 1.
    Fig 1: Battery Connection
    GC0008606Courtesy of DAIMLERCHRYSLER CORP.
  2. Raise vehicle and support. See Fig 2.

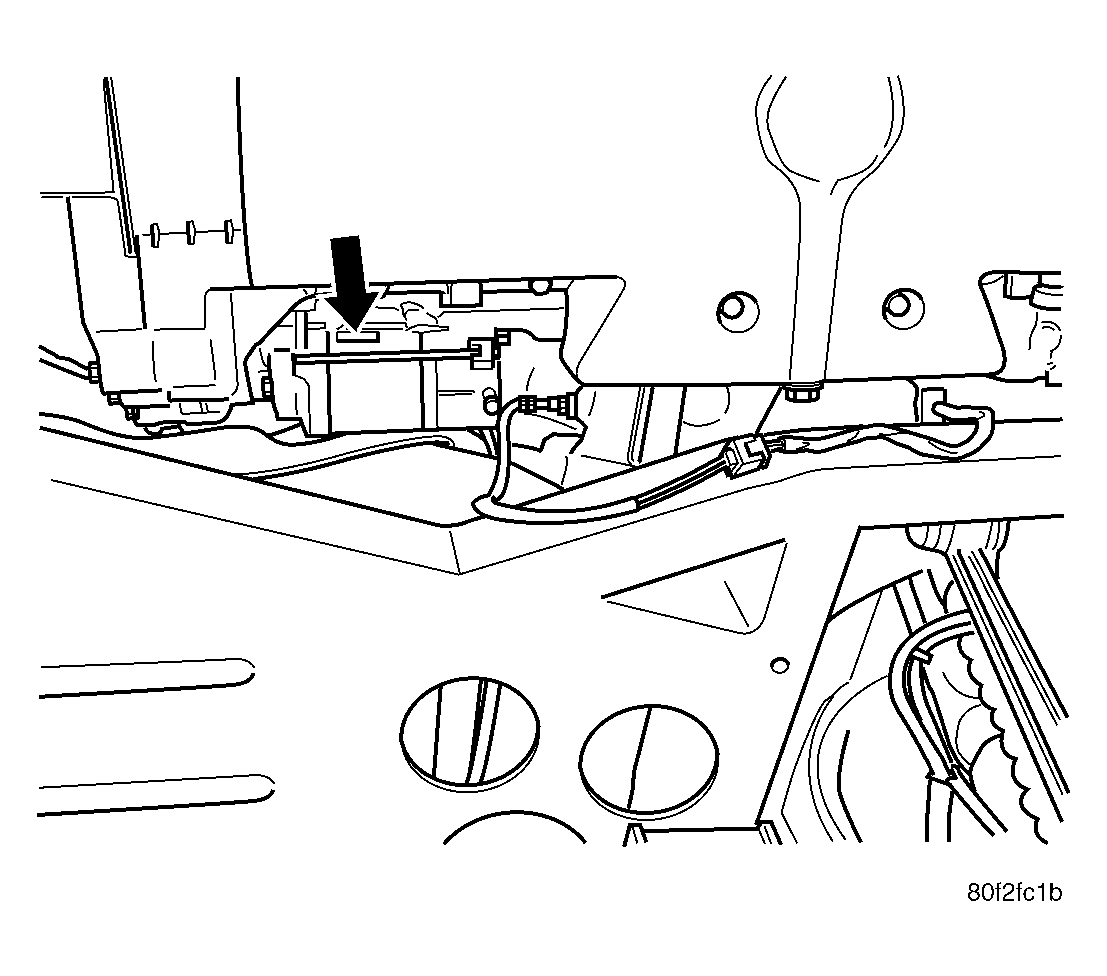

    Fig 2: Starter Location
    GC0008605Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the solenoid connector.
  4. Remove the positive battery cable.
  5. Remove the upper bolt. See Fig 3.
    Fig 3: Locating Starter Bolts
    GC0008607Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the lower bolt.
  7. Remove the starter.
