Air Cleaner Element: Installation

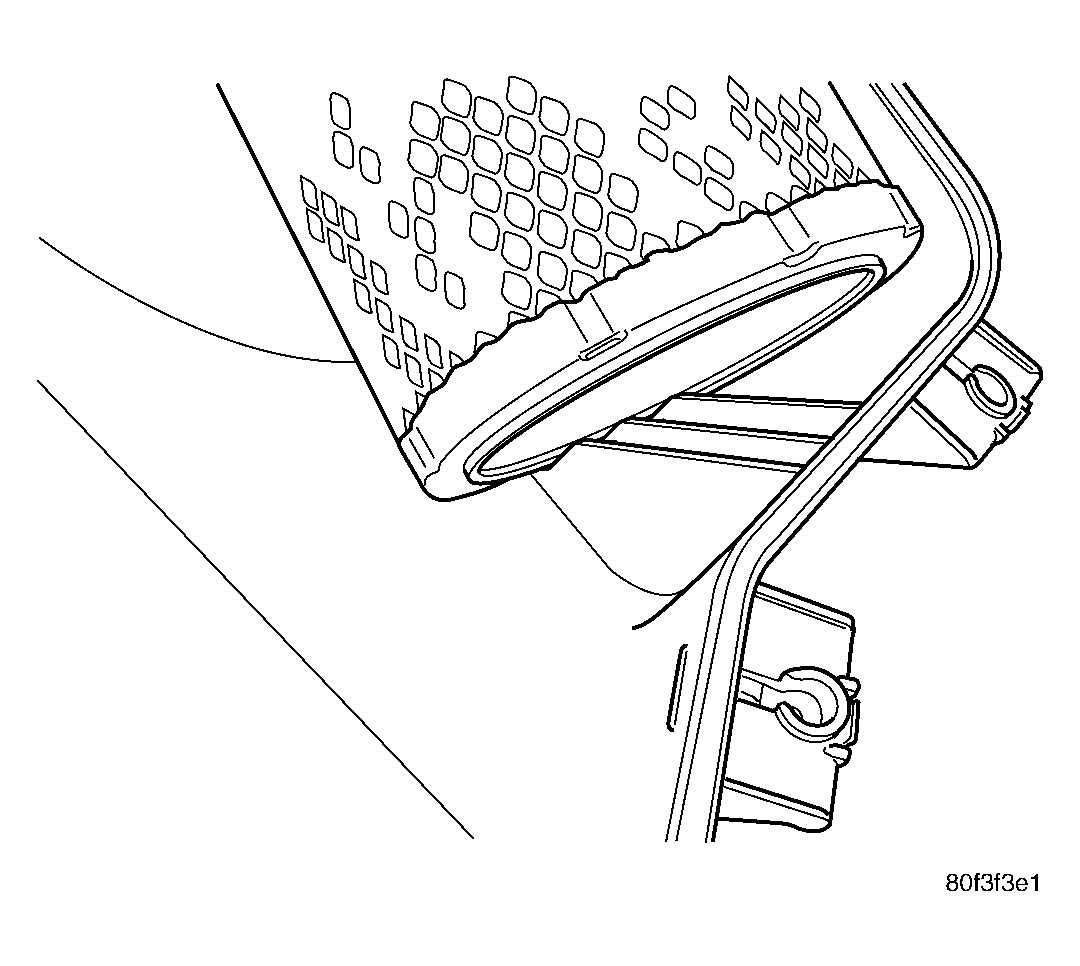

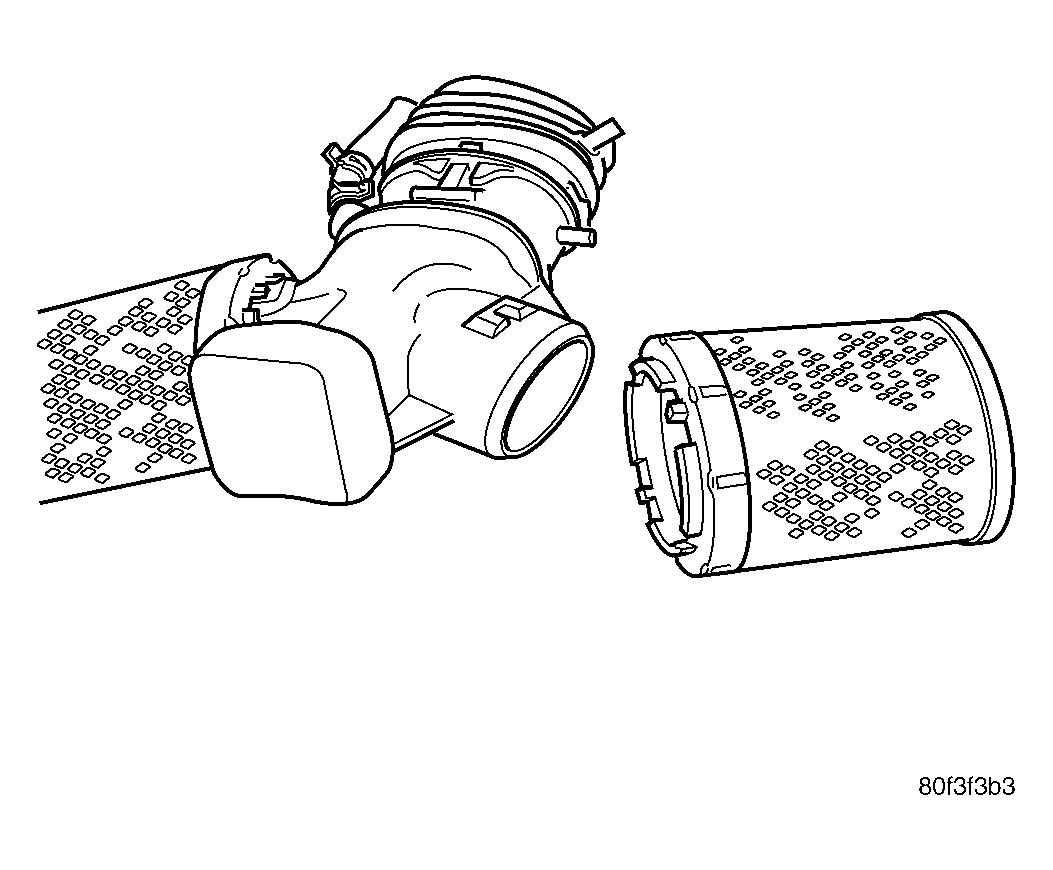

  1. Install the air filter element to the nozzle assembly, the assembly is held in place by the lips in the housing. See Figure.Figure for the filter element.
  2. Install the top of the air cleaner assembly.

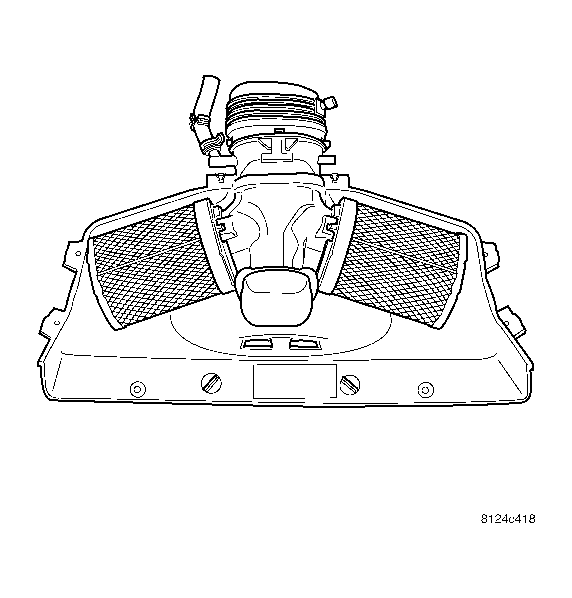

  3. Install air cleaner cover screws. See Figure.
