Starter Motor: Installation

  1. Install the starter.
  2. Install the lower bolt.

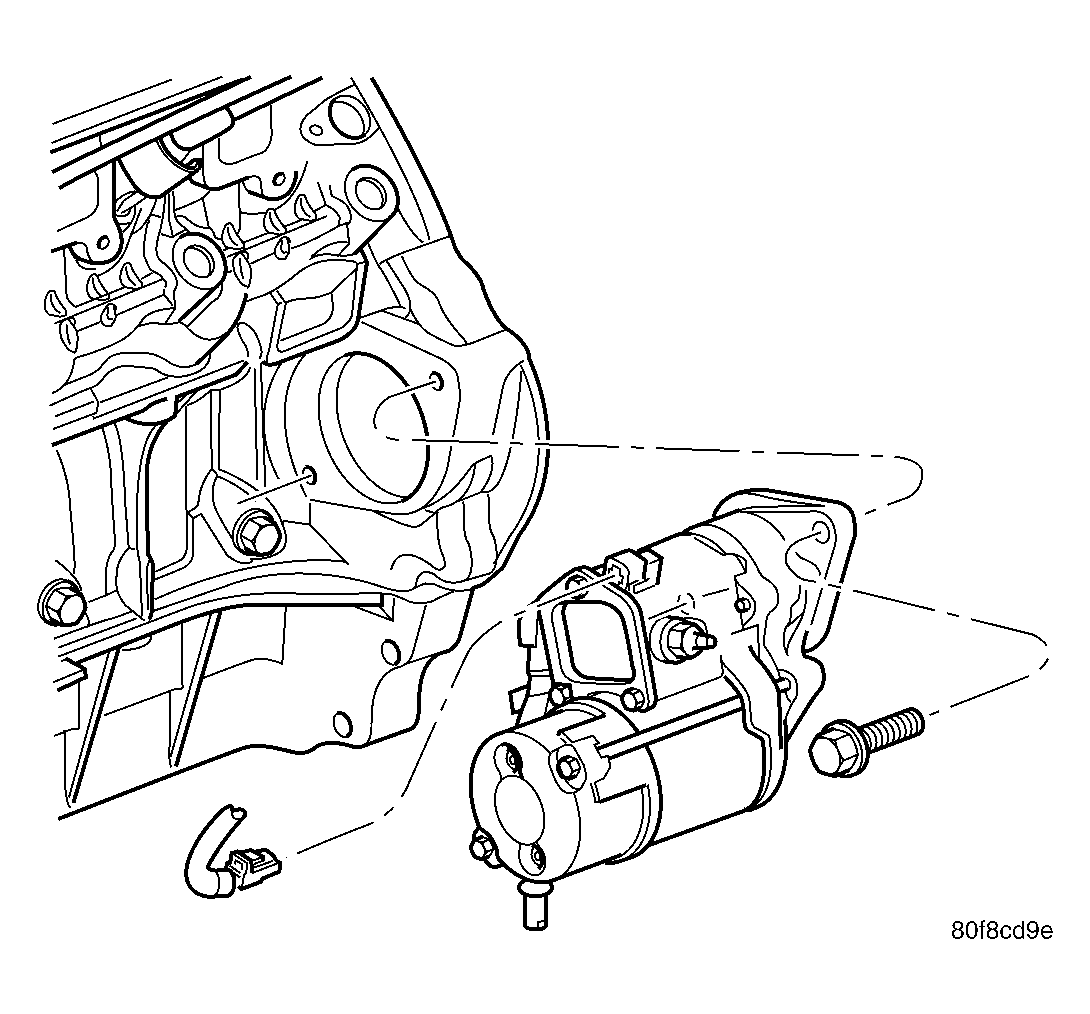

  3. Install the upper bolt. See Figure.
  4. Install the positive battery cable.
  5. Connect the solenoid connector.
  6. Lower vehicle.

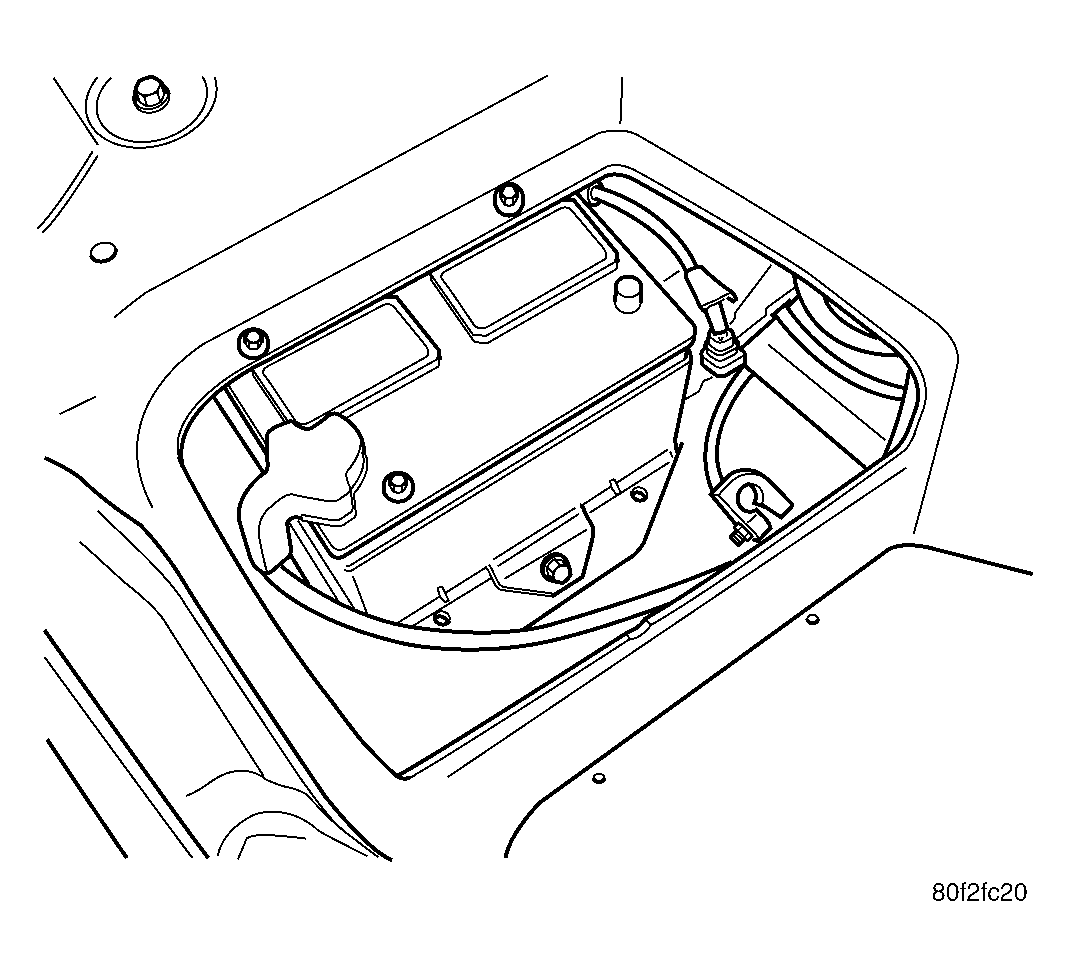

  7. Connect the negative battery cable. See Figure.
